Link E36X, BMW 3 Series E36
Link E36X, BMW 3 Series E36
Regular price
€1.610,00 EUR
Regular price
Sale price
€1.610,00 EUR
Unit price
per
Taxes included.
Couldn't load pickup availability
AVAILABLE IN 7-10 WORKING DAYS
Easy to install. Convenient. Reliable.

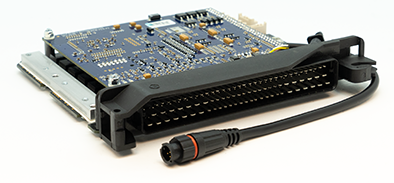

G4X PlugIn control units offer the latest engine management technology, designed to easily maximize your car's potential.
This control unit fits inside the factory OEM housing. Installation is very simple, with no need to modify the factory wiring harness according to the models listed below.
This control unit is designed for the E36 M50TUB25 engine .
- Before purchasing, please check that the connector matches the connector in the listed photo.
- This ECU only works with engine code M50TUB25 (factory Bosch ECU).
- Works with manual and automatic transmissions.
- Built-in 4 bar MAP sensor or 7 bar MAP sensor included.
- Most factory features are supported.
- Check the Features tab for I/O expansion options.
- This control unit will need to be modified before the E-Throttle can be used.
Suitable applications:
M50TUB25 engine with factory Bosch M3.3.1 control unit
| G4X Plugin Key Features (where applicable): Fuel and ignition mapping up to 6D Closed-loop cam precision control (four cams, independent control) Sequential fuel delivery Digital trigger, all OEM models Minimum OEM hardware supported 5D boost control with three switchable tables Motorsport features: antilag, launch, flat shift Continuous barometric correction (on board) CAN port QuickTune: Automatic fuel tuning Single cylinder correction USB Tuning Cable Recording statistics in the on-board memory Shift compensations for spark, boost and fuel Dual fuel, ignition and boost maps selectable in real time Timing and crankshaft sensors can be a combination of Hall effect, variable reluctance, or optical Boost control related to gear, speed or throttle position 512 megabyte data logging memory Injection in stages Beat with "windowing" Expansion connector: The following expansion connector inputs/outputs are provided: TEMP3 Temperature sensor input TEMP4 Temperature expansion sensor input VOLT4 0-5V analog input VOLT5 0-5V analog input DI8 Digital input DI7 +5V digital input Low current +5V GND power sensor ground only *For details on installing the expansion cable, see the PC Link Help file. Download the manual |
| Click here to download the full PDF specifications. |
