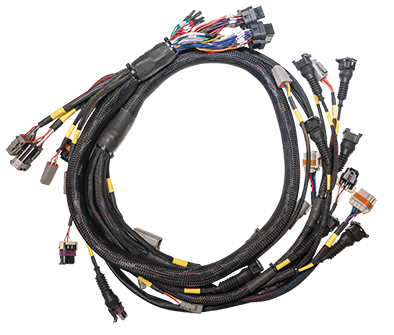

Engine wiring harness terminated GM LS GEN3/4
Engine wiring harness terminated GM LS GEN3/4
Regular price
€600,00 EUR
Regular price
Sale price
€600,00 EUR
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Motor harness with termination to cover a wide range of GM LS engine variants. Please note that due to the large number of supported engines, user modification may be required for some applications. Consult the Installation Manual or contact the Links technical support team to verify engine suitability.
PCLink boot MAPs available for both Gen3 and Gen4 LS (see below for download)
Supported engines
Gen 3 LS1/LS6
Gen 4 LS2/LS3/LS7*
Compatible ECUs
G4X StormX (Cable Throttle Body)
G4X XtremeX (Body f
(cable-based and drive-by-wire)
Please see the feature sheet and installation manual for further details.
*Notes for use with Gen 4 engines
1. A camshaft sensor wiring harness extension will be required to accommodate the Gen 4 LS front camshaft sensor.
2. A minor modification to the camshaft sensor connector is required. See the "Camshaft Connector" section in the installation manual for details.
3. Most Gen 4 engines will require injector connector adapters to fit USCar connectors. Check the injector connector to confirm. Use Link Part Number 101-0287.
4. To support Gen 4 factory knock sensors, the Link LS Gen 4 Knock Adapter Harness (part number 101-0306) is required.
5. To support the Gen 4 factory MAP sensor, you will need a Link LS Map Adapter Harness and a Gen 3 to Gen 4 MAP Sensor Extension (alternatively, you can use a Link MAP sensor supported directly from the harness).
If a fuse box and relay are needed, also purchase part number 101-0310.
|
