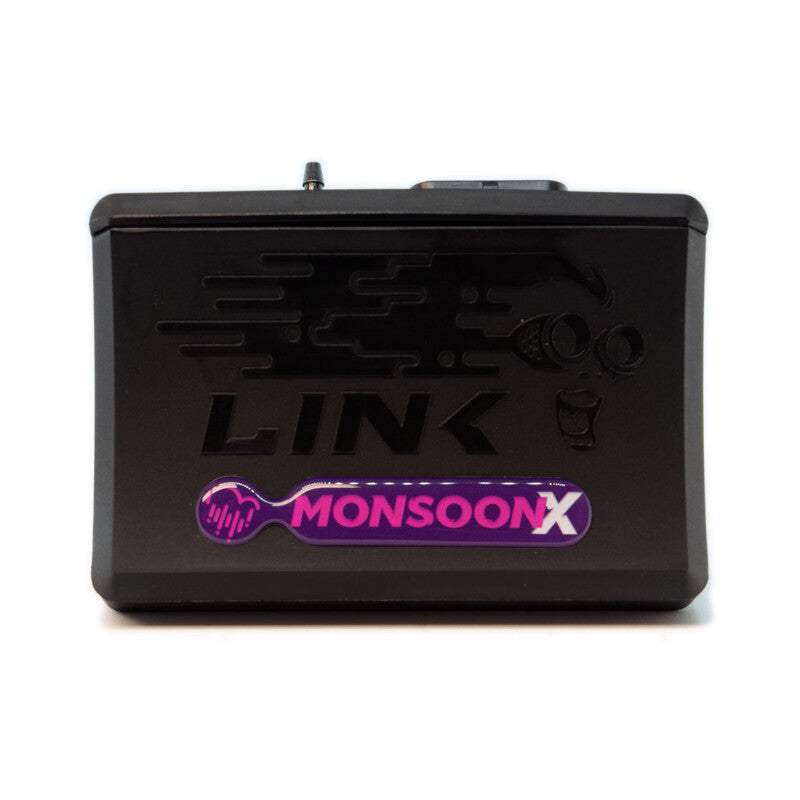

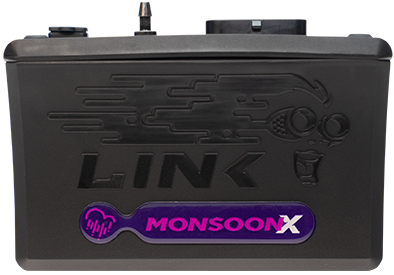

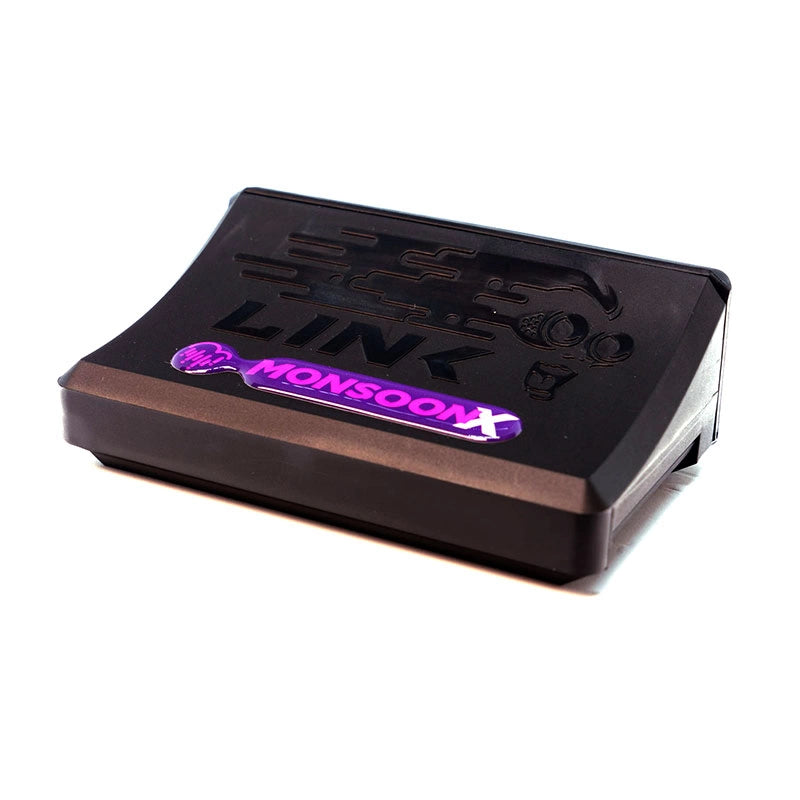

G4X MonsoonX Control Unit

G4X MonsoonX Control Unit

€1.335,00 EUR
€1.335,00 EUR
Sale Sold out
Taxes included.

MonsoonX

AVAILABLE IN 7-10 WORKING DAYS
More features, more power.

The MonsoonX can control up to two rotors or four cylinders with sequential injection and direct ignition. Alternatively, it can be used for up to eight cylinders with batch ignition.


This makes it ideal for naturally aspirated or turbocharged engines that just need a re-tune and one or two extra features, without having to upgrade to one of our higher-level ECUs.


The MonsoonX processing unit has been updated to provide 512 megabytes of data logging capacity, meaning significantly more data can be recorded at a higher sample rate. The control loops are also more precise than its predecessor, the G4+, along with innovations such as single-precision floating-point fuel tables, improved ignition resolution, and faster communications. These upgrades make the G4X Monsoon a real powerhouse in a small package.


The G4X is 512 megabytes at 32-bit and uses up to 250 channels, each limited to a maximum of 1 kHz per channel (by the operating system), with a maximum of 100 kSamples/sec.


With the MonsoonX, you get all the tuning features of the AtomX, but you can also choose to activate some of the following features: Launch Control, Anti-lag, VVT Control, and Closed-Loop Boost Control. It also features a built-in 4 or 7 bar MAP sensor, further reducing installation costs. Now with Knock Control.


Note: MonsoonX will run all of the above functions, but not all at once. The number of functions that can be run depends on the limited number of inputs and outputs required for each function.


MonsoonX is an automotive control unit.


Request a frame.



MonsoonX is ideal for:

1-12 Distributed Cylinders

Wasted spark in cylinders 2-8

1-4 cylinder direct spark

Strane Fire Engine

2-stroke engines

Configurable ignition order

Configurable TDC points (for occasional fires)

Entrances

4 digital inputs

2 temperature inputs

4 analog inputs

2 trigger inputs

1 x Knock input (shared with DI4)

1 integrated 4-bar MAP sensor


Exits

4 x injector drives

4 x Ignition Driver

6 x Auxiliary Outputs^

Sensor power supply +5V

^Unused power controls can be used as additional Aux outputs


Communications

1x CAN bus

1x USB tuner connection

Updated communications chip (four times faster than the G4+)


Physicist:

Dimensions: 95mm (L) x 130mm (W) x 45mm (H) (without frame)

Weight: 220 grams


Advanced features not present on AtomX:

Antilag, acceleration antilag and launch control.

Up to 2 cams VVT a fully closed loop variable.


Miscellaneous:

512 MB of memory inside the data storage unit

20 general purpose tables

Works with PC Link software for G4X

The MonsoonX comes with waterproof connectors, a mounting bracket, and a USB tuning cable. A Loom is available for purchase separately.

Download the MonsoonX Quick Start Guide

Download the latest version of G4X PC Link

Engine configurations

  • 1-12 Distributed Cylinders
  • Wasted spark in cylinders 2-8
  • 1-4 cylinder direct spark
  • Strane Fire Engine
  • 2-stroke engines
  • Configurable ignition order
  • Configurable TDC points (for occasional fires)

Refueling regulations

  • Load table for up to 440 zones with configurable load and motor speed. Configurable X and Y axis parameters.
  • Multiple fuel tables
  • Up to 6D fuel mapping (3D fuel table + 3x3D overlay trim tables)
  • Injection rate control for group injection mode
  • Advanced enrichment for traditional fuel tuning
  • Pre-Crank Prime
  • Crank First First
  • Crank enrichment
  • Post-start enrichment
  • Enrichment of heating
  • Acceleration Enrichment
  • IAT Fuel Correction
  • Injector dead time compensation
  • Injector short pulse width compensation
  • Injector phasing control with definable injection start/end
  • AFR table correction
  • Double closed loop lambda
  • Fuel adjustments for individual cylinders
  • Cutting off excess fuel
  • Minimum load setting
  • Fuel temperature correction

Ignition adjustments

  • Ignition table for up to 440 zones with configurable load and engine speed. Configurable X and Y axis parameters.
  • Maximum advancement
  • Spark duration
  • Dwell time table. Configurable X and Y axis parameters.
  • Multiple ignition table
  • Up to 6D ignition mapping (3D ignition table + 3x3D overlay tuning tables)
  • Single Cylinder Ignition Adjustment
  • IAT finishing
  • Voltage correction
  • ECT Trim
  • OEM Compatibility
  • CDI Compatibility

Limits

  • The progressive limitation depends on the engine temperature
  • Vehicle speed limit
  • System voltage limit
  • User-configurable RPM limits based on external input

Trigger

  • Digital trigger decoding
  • Relay, optical proximity or Hall sensors
  • Programmable filtering and activation thresholds
  • Configurable trigger patterns or preset trigger options.
  • Supports almost all OEM trigger models and custom trigger layouts

Characteristics of motorsports

  • Gearbox control (via digital inputs only)
  • Launch control
  • Anti-delay
  • VVT Control

Communications

  • via mini USB
