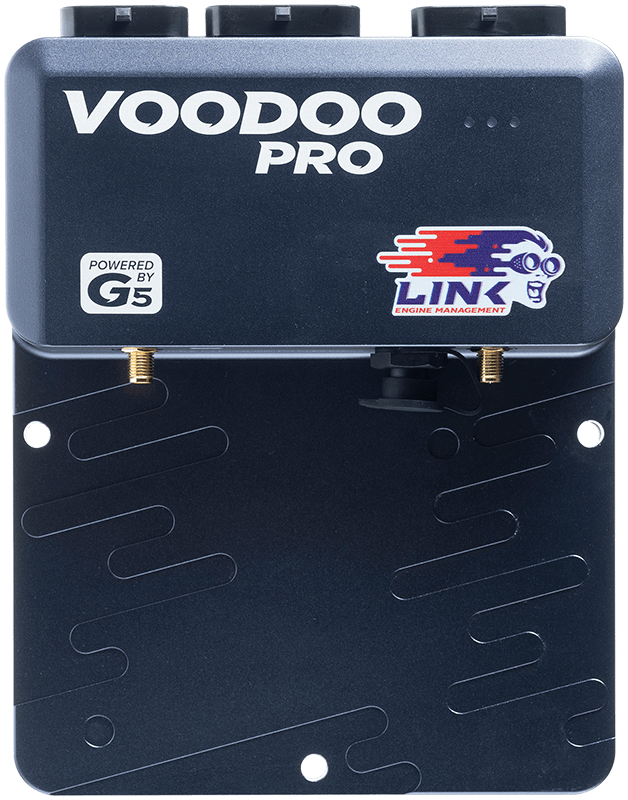

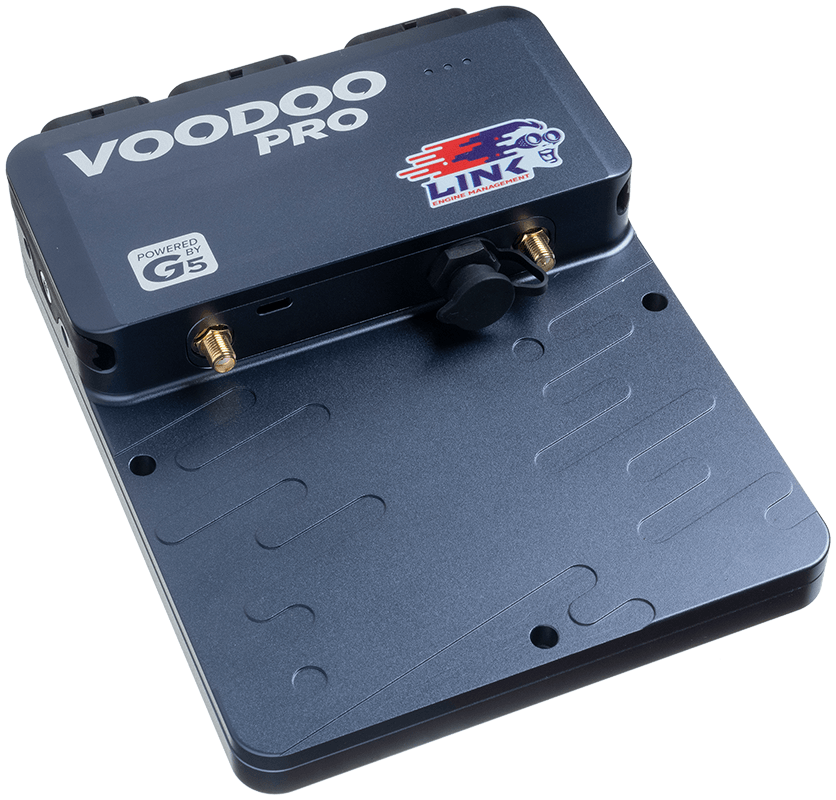

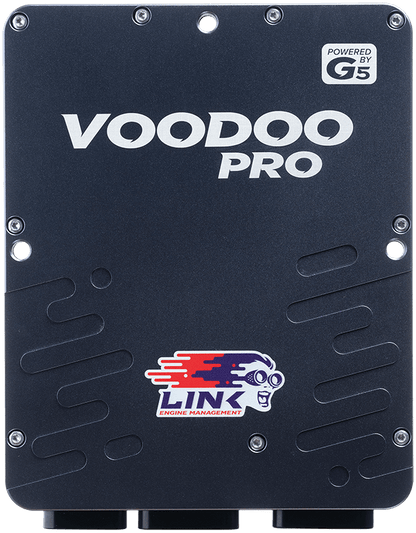

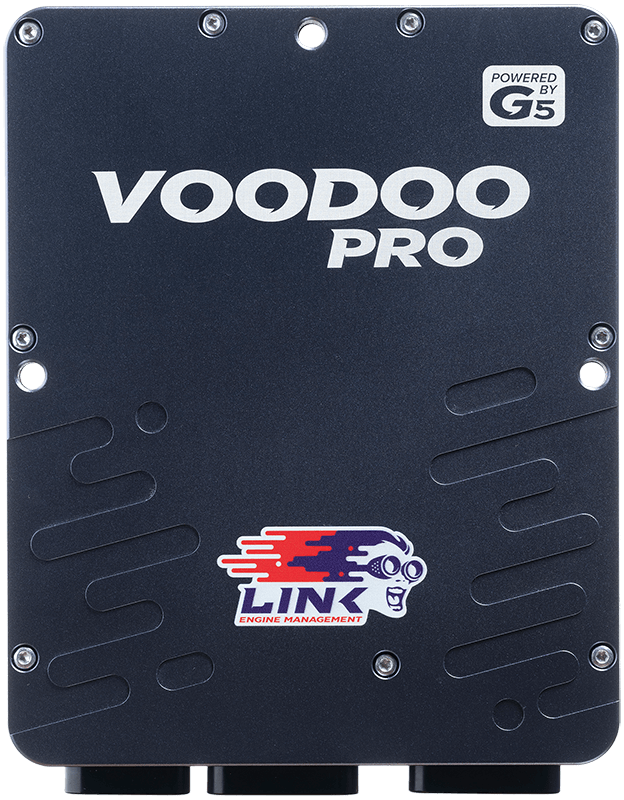

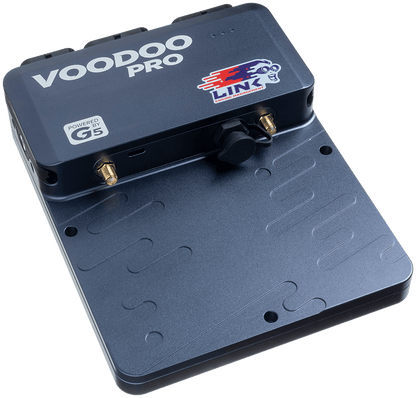

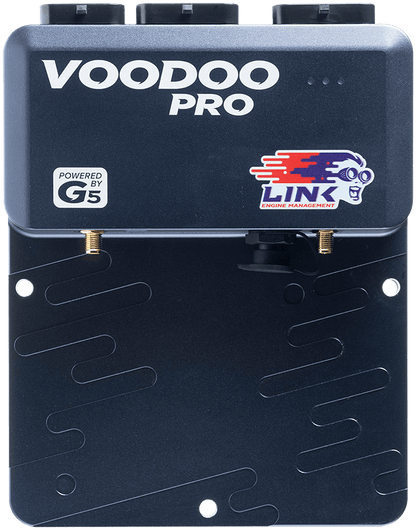

G5 Voodoo PRO control unit

New G5 Voodoo Pro

AVAILABLE IN 7-10 WORKING DAYS

The G5 Voodoo Pro puts real magic in your hands and opens up a new world of possibilities with the ability to control direct and port injection, multiple injector and ignition actuations, advanced communications, and many more features.

With 12 injector units, 8 igniter units and 4 multifunctional units (inj, ign, aux) (24 in total), the G5 Voodoo Pro can handle up to:

• Twelve cylinders or six rotors with sequential injection and direct ignition, or
• Eight-cylinder with multi-stage injection and direct ignition.

The G5 Voodoo Pro Processor is the perfect choice for professional level motorsports.

For more information, see the Features & Specifications tab or view our product overview page here .

The G5 Voodoo Pro automotive computer unit works on a wide range of vehicles. For advice on your specific project, contact a LinkECU dealer or technical support.

Click here for more technical information (includes downloads for the Quick Start Guide and I/O table)

In the box:

• G5 Voodoo Pro Control Unit
• USB-C connection cable
• WiFi Antenna
• 4m GPS antenna (magnetic or adhesive mount)
• USB-C and SMA dust covers
• Quick Guide (A5)
• Installer I/O Table (A3)
• Internet connection

  WiFi integration, with real-time PC Link connection Integrated Global Positioning System (GPS) up to 50 Hz Dual integrated digital broadband Lambda controllers Integrated electronic double accelerator (Drive by Wire) 12 injection, 8 ignition and 4 multifunction controls (inj, ign, aux) (24 in total) Dual microcontrollers Direct injection (DI) on up to 12 injection units (using an external OEM or aftermarket driver box - more info on working with DI here ) Link CAN files: Create your own separate CAN files with additional streams and channels, which can be saved, locked and shared It runs the same highly rated PC Link software as the G4X, meaning you don't have to learn a new software package. You can open G4X and G5 log and map files with the same software (the G4X map can also be loaded onto a G5 Voodoo Pro). Flexible mounting options: Mount to a surface using the three through-holes from top to bottom with M5 or 3/16 Allen screws, or hang the control unit from a dash bar or similar using custom brackets and the four M5 side mounting points.   Requires “A”, “B” and “E” connector kits (not supplied). Click here for more technical information (includes downloads for the Quick Start Guide and I/O table)

  Inputs/Outputs Control any engine from 2 cylinders up to 12 cylinders thanks to: 12 injector pins 8 minutes of ignition 4 dual-role pins for injector/ignition Access up to 30 auxiliary pins (if configured for a 4-cylinder sequential engine): 8 dedicated auxiliary pins 4 shared pins e-throttle/H-Bridge Shared 2-pin broadband heaters Up to 16 from replacement injectors and ignition units Any unused injector/ignition pin can be used as an auxiliary pin All power and auxiliary pins are protected against reverse power. 14 analog inputs 10 digital inputs 4 temperature inputs Double knock entrances 2 trigger inputs Dedicated power switch pin 2 x internal wideband lambda controllers Dual electronic throttle, with internal solid-state throttle disconnect relay 5v power sensor 1 hour CAN input via CAN connector supported   Communications USB-C (cable included) Connect directly to the control unit via the built-in Wi-Fi access point or add it to an existing network (antenna included) Dual CAN (CAN 1 on CAN connector, CAN 2 on E header) GPS (antenna included)   Dimensions and weight Length: 177.1 mm (6.97 in) Width: 137.3 mm (5.40 in) Minimum side height: 15.5 mm (0.61 inches) Maximum lateral height: 40.2 mm (1.58 in) Weight: 795g (28oz)   Connectivity G5 Voodoo Pro supports the following communication standards: USB-C Wifi CANDIES GPS   The G5 Voodoo Pro uses Super Seal A, B and E plugs. You can now connect to the control unit via a standard USB-C cable or, alternatively, via WiFi. CANBUS 2 can now be accessed via its dedicated pins in the E header, freeing up two digital inputs. GPS connectivity can be initialized by simply adding a GPS antenna.
