ECU plugin TTLink - TTX (1.8T VAG)
ECU plugin TTLink - TTX (1.8T VAG)
Couldn't load pickup availability
Easy to install. Affordable. Reliable.
AVAILABLE IN 7-10 WORKING DAYS
G4X PlugIn control units offer the latest engine management technology, designed to maximize your car's potential.
This control unit fits the factory OEM location. Installation is very simple, without having to modify the original wiring harness for the models listed below.

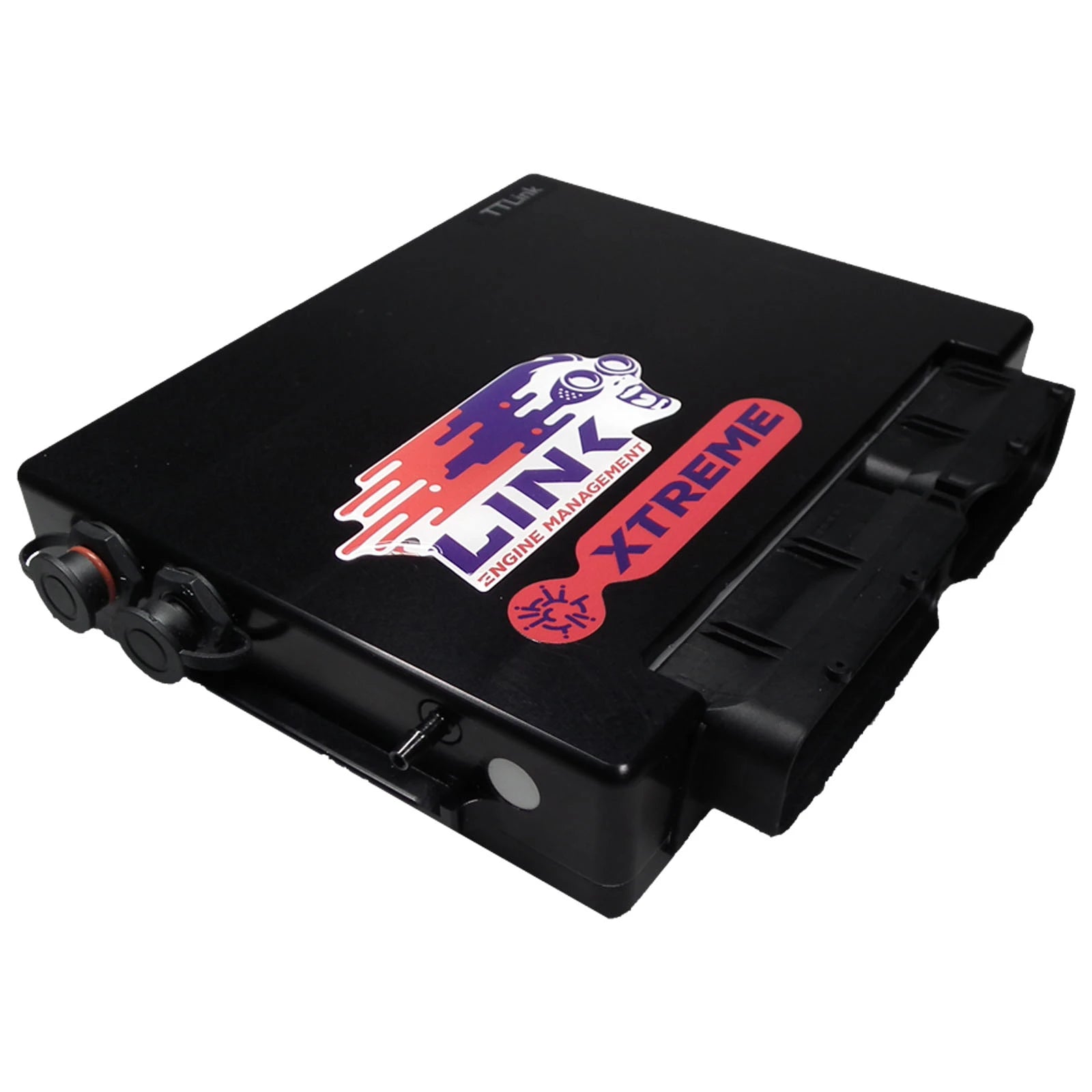

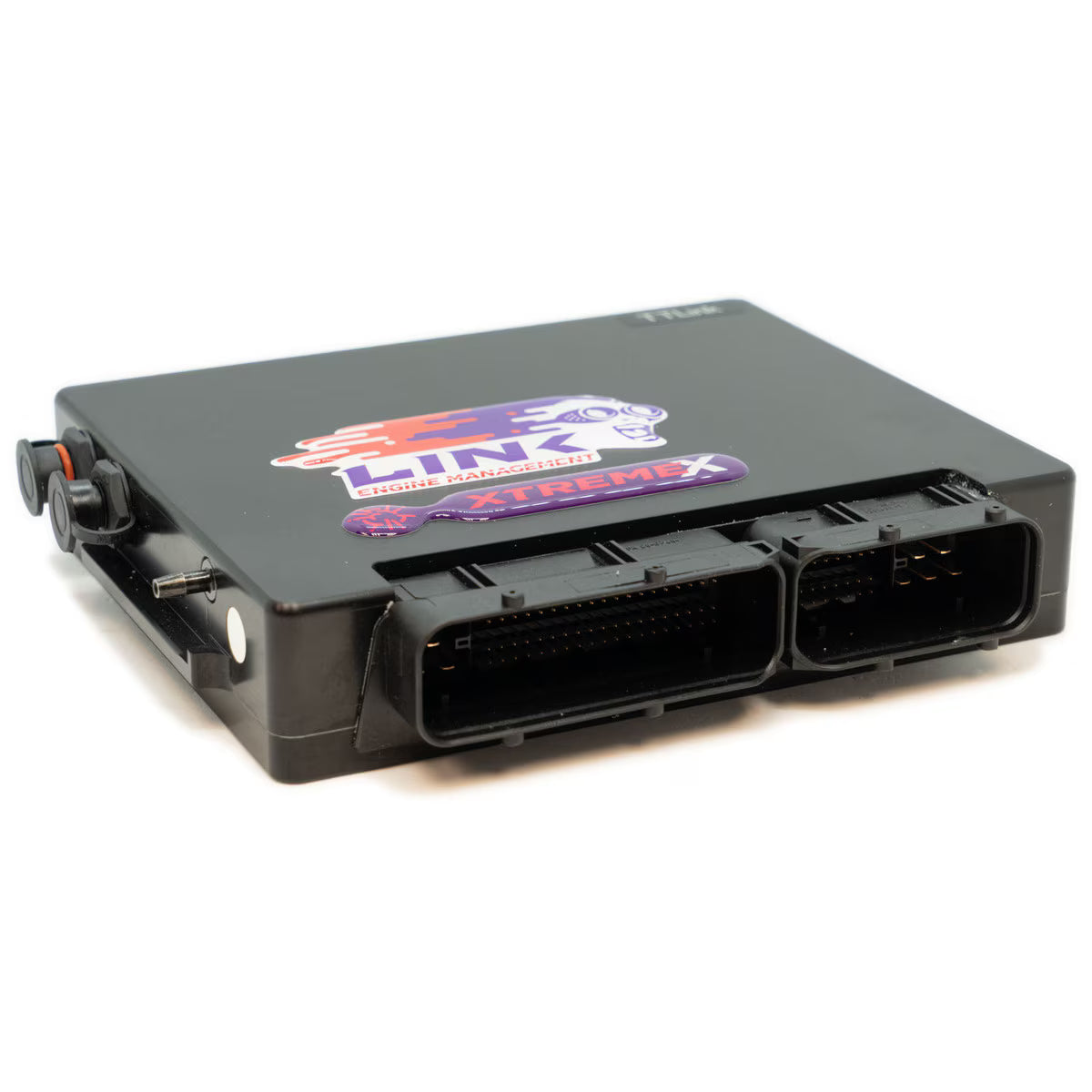

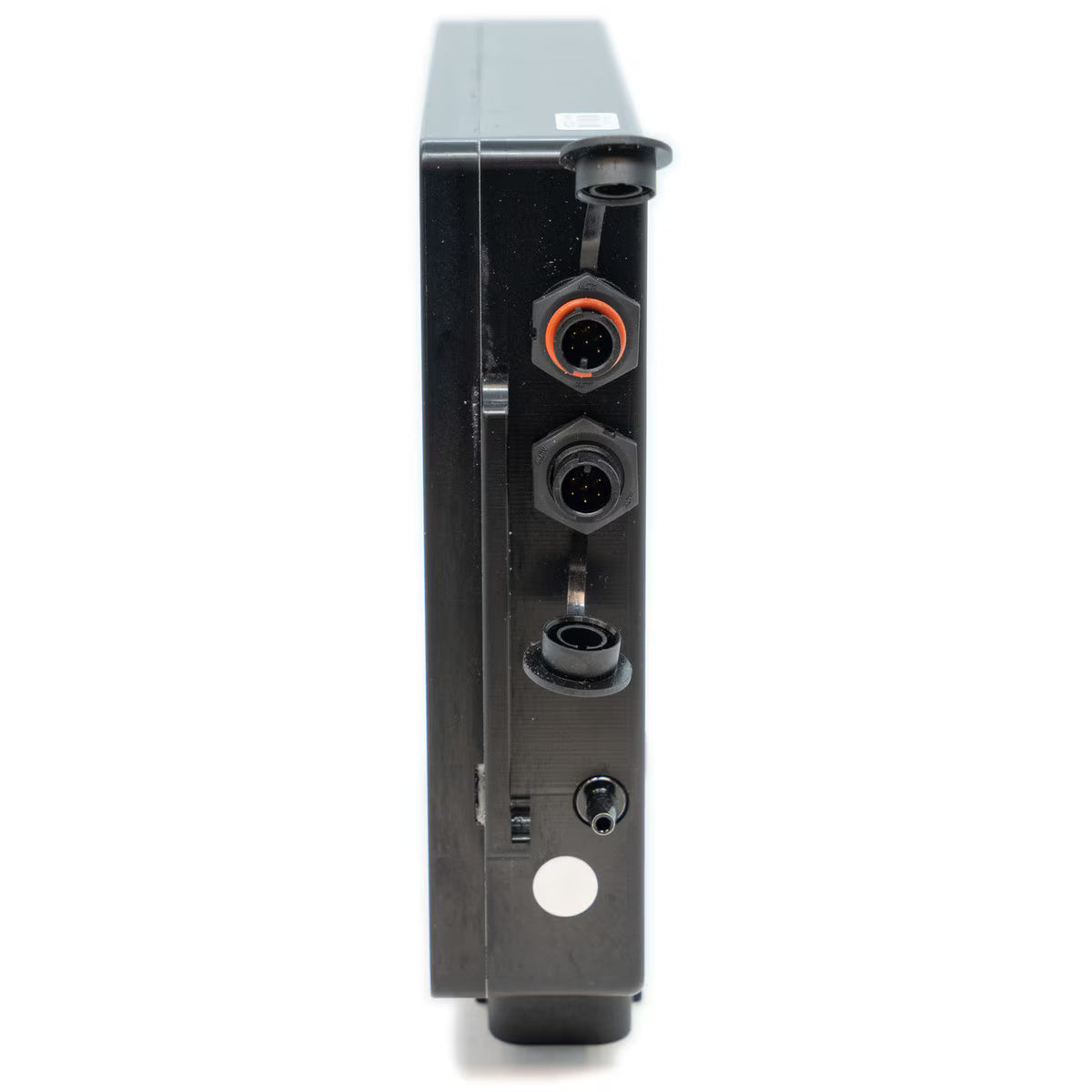

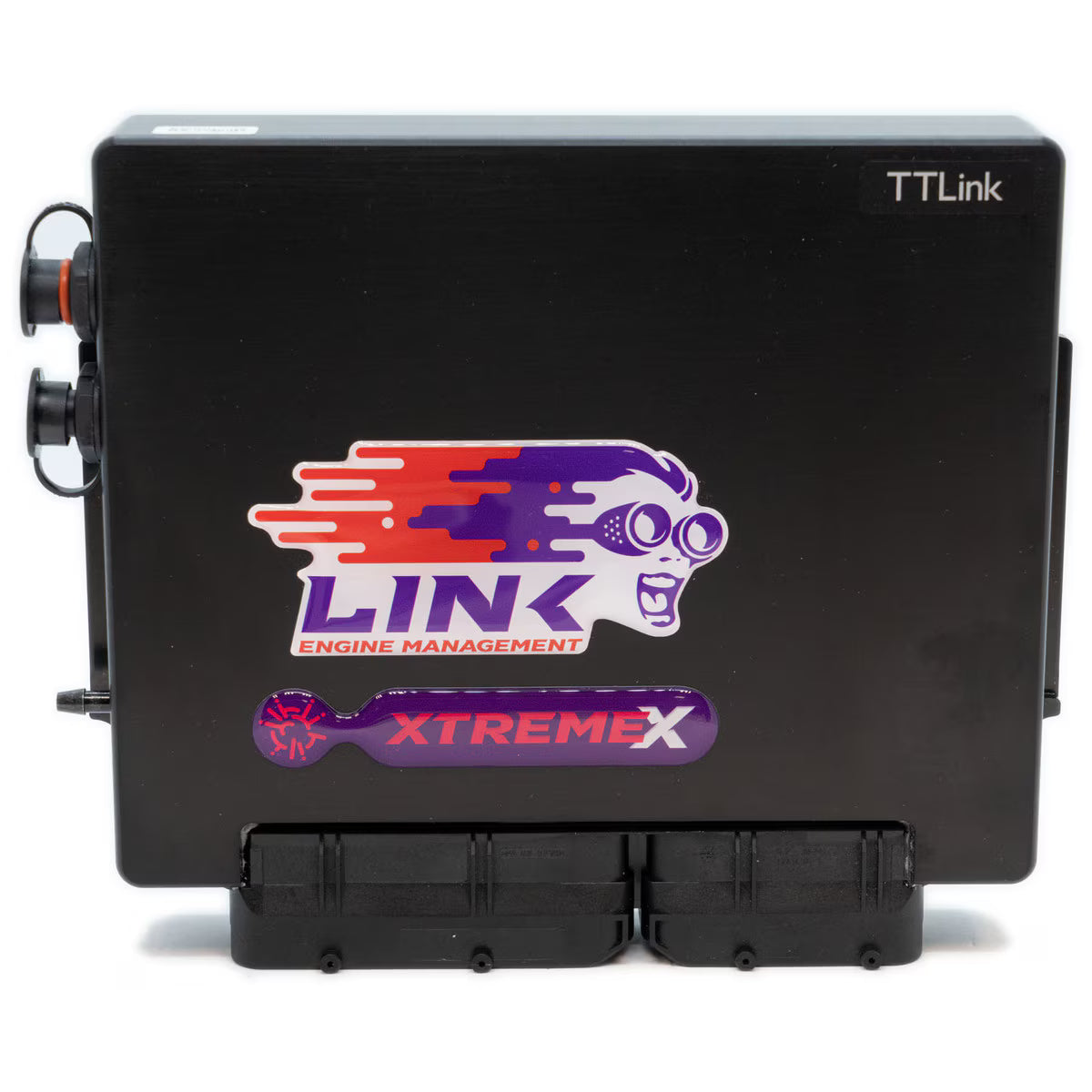

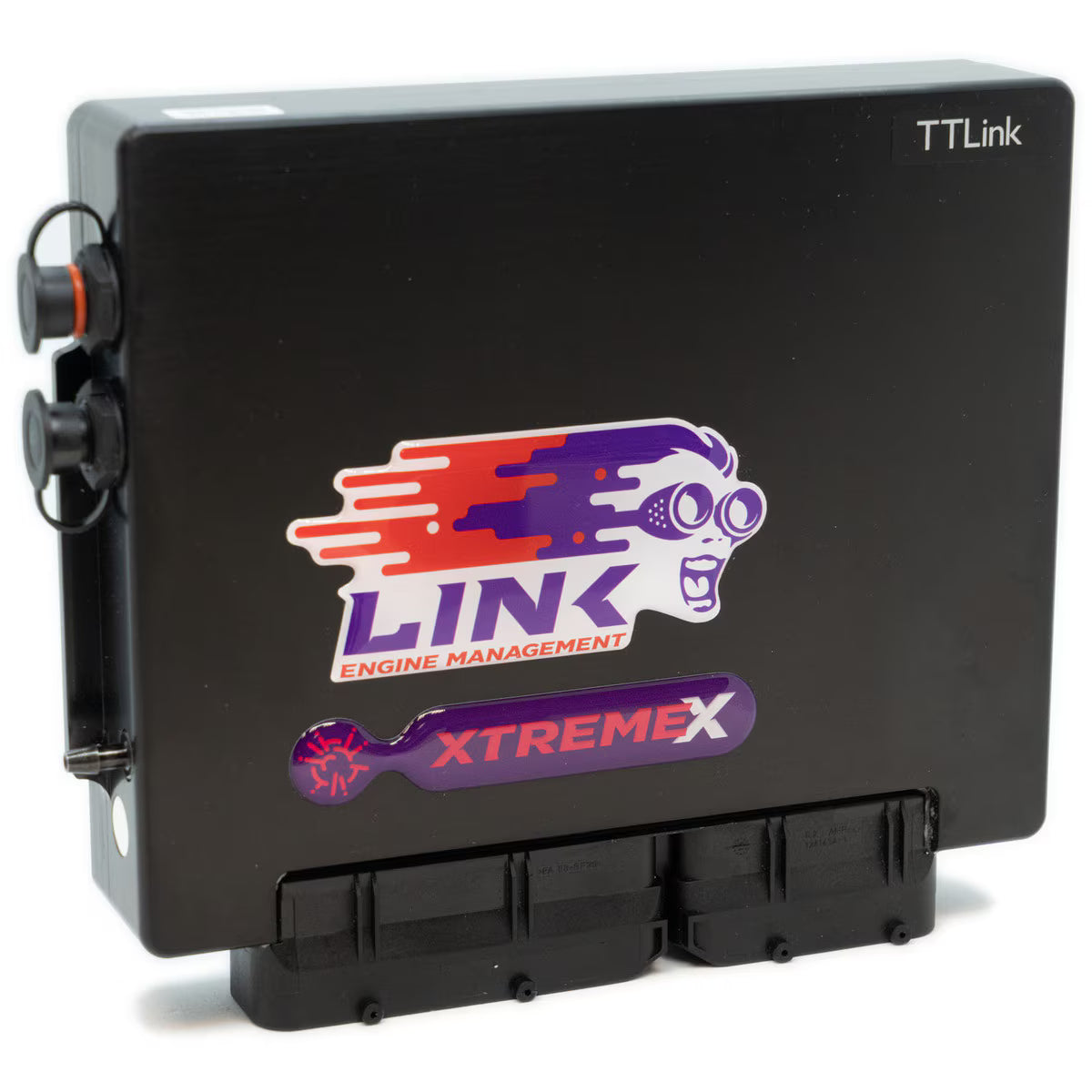

The Link G4X TTLink TTX PlugIn control unit is designed for the VWAG PQ34 1.8l Turbo engine with electronic throttle.
- This control unit only works with manual transmissions.
- Includes a built-in 4 bar or 7 bar MAP sensor.
- Most factory features are supported.
- Check the features tab for I/O expansion options
- This PlugIn control unit is not compatible with CANJST cables. To connect to the CAN, use CANLTW (code 101-0211) or CANF (code 101-0020).
Suitable applications:
- The engine must be 1.8T
- The ECU connector must have two connectors, 121 pins total
- Must be Drive by Wire (E-throttle)
- It must be manual transmission
- Front-wheel or all-wheel drive (Haldex)
The following vehicles are known to be compatible:
|
Do |
Model |
Years |
Engine code |
|
Audi |
TT |
99-02 |
AJQ |
|
VW |
Cockroach |
2005 |
AWU |
|
VW |
Passat |
2000 |
|
|
VW |
Golf |
2001 |
AUM |
The following vehicles are likely compatible with the control unit, but have not been tested:
|
Do |
Model |
Years |
Engine code |
|
Audi |
A3 |
98-00 |
AJQ |
|
|
A3 |
99-00 |
APP |
|
|
A3 |
99-01 |
ARZ |
|
|
A3 |
00-05 |
ARX |
|
|
A3 |
00-05 |
ARIO |
|
|
A3 |
00-05 |
AUM |
|
|
A3 |
00-05 |
AUQ |
|
|
A4 format |
98-00 |
Image processing unit |
|
|
A4 format |
00-02 |
AVJ |
|
|
A4 format |
00-02 |
AWT |
|
|
A4 format |
02-03 |
BEX |
|
|
A4 format |
04-07 |
BFB |
|
|
A6 |
98-00 |
Image processing unit |
|
|
A6 |
00-02 |
AWT |
|
|
S3 |
98-01 |
APY |
|
|
S3 |
00-05 |
BAM |
|
|
S3 |
02-03 |
AMK |
|
|
TT |
98-00 |
APX |
|
|
TT |
99-00 |
APP |
|
|
TT |
99-02 |
AJQ |
|
|
TT |
00-02 |
AMU |
|
|
TT |
00-05 |
ARX |
|
|
TT |
00-05 |
ARIO |
|
|
TT |
00-05 |
AUM |
|
|
TT |
00-05 |
AUQ |
|
|
TT |
00-05 |
BAM |
|
|
TT |
00-06 |
AWP |
|
|
TT |
05-06 |
BFV |
|
|
TT |
05-06 |
BVP |
|
|
TT |
05-06 |
BVR |
|
|
|
|
|
|
Seat |
Alhambra |
00-04 |
AWC |
|
|
Ibiza |
99-00 |
AQX |
|
|
Ibiza |
00-01 |
AYP |
|
|
Ibiza |
04-08 |
BJX |
|
|
Ibiza |
05-08 |
BBU |
|
|
Lion |
98-00 |
AJQ |
|
|
Lion |
99-00 |
APP |
|
|
Lion |
00-01 |
AJQ |
|
|
Lion |
00-05 |
ARIO |
|
|
Lion |
00-05 |
AUQ |
|
|
Lion |
00-05 |
BAM |
|
|
Lion |
02-03 |
AMK |
|
|
|
|
|
|
Škoda |
Octavia |
99-01 |
ARZ |
|
|
Octavia |
00-05 |
ARX |
|
|
Octavia |
00-05 |
ARIO |
|
|
Octavia |
00-05 |
AUM |
|
|
Octavia |
00-05 |
AUQ |
|
|
|
|
|
|
VW |
Bora |
00-05 |
ARX |
|
|
Bora |
00-05 |
ARIO |
|
|
Bora |
00-05 |
AUM |
|
|
Bora |
00-05 |
AUQ |
|
|
Bora |
02-06 |
AWP |
|
|
Golf |
99-01 |
ARZ |
|
|
Golf |
00-05 |
ARX |
|
|
Golf |
00-05 |
ARIO |
|
|
Golf |
00-05 |
AUM |
|
|
Golf |
00-05 |
AUQ |
|
|
Golf |
02 |
AWP |
|
|
Golf |
02-06 |
AWP |
|
|
Jetta |
01-09 |
AWP |
|
|
New Beetle |
99-00 |
APH |
|
|
New Beetle |
99-00 |
AVC |
|
|
New Beetle |
02-04 |
AWP |
|
|
Passat |
98-00 |
Image processing unit |
|
|
Passat |
00-02 |
AWT |
|
|
Pole |
04-08 |
BJX |
|
|
Pole |
05 |
AWP |
|
|
Pole |
05-08 |
BBU |
|
|
Sharan |
00-04 |
AWC |
Vehicles with the following engine codes are known to be incompatible :
AEB, AGU, AJH, AJL
G4X Plugin Key Features (where applicable):
I/O Expansion Options: The TT Link does not have a separate expansion connector. The expansion pins are accessible through the main connector, listed below.
Download the manual Click here |
| Click here to download the full PDF specifications. |
