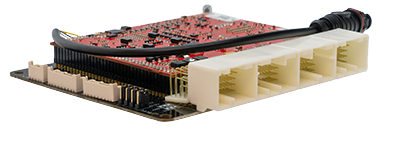

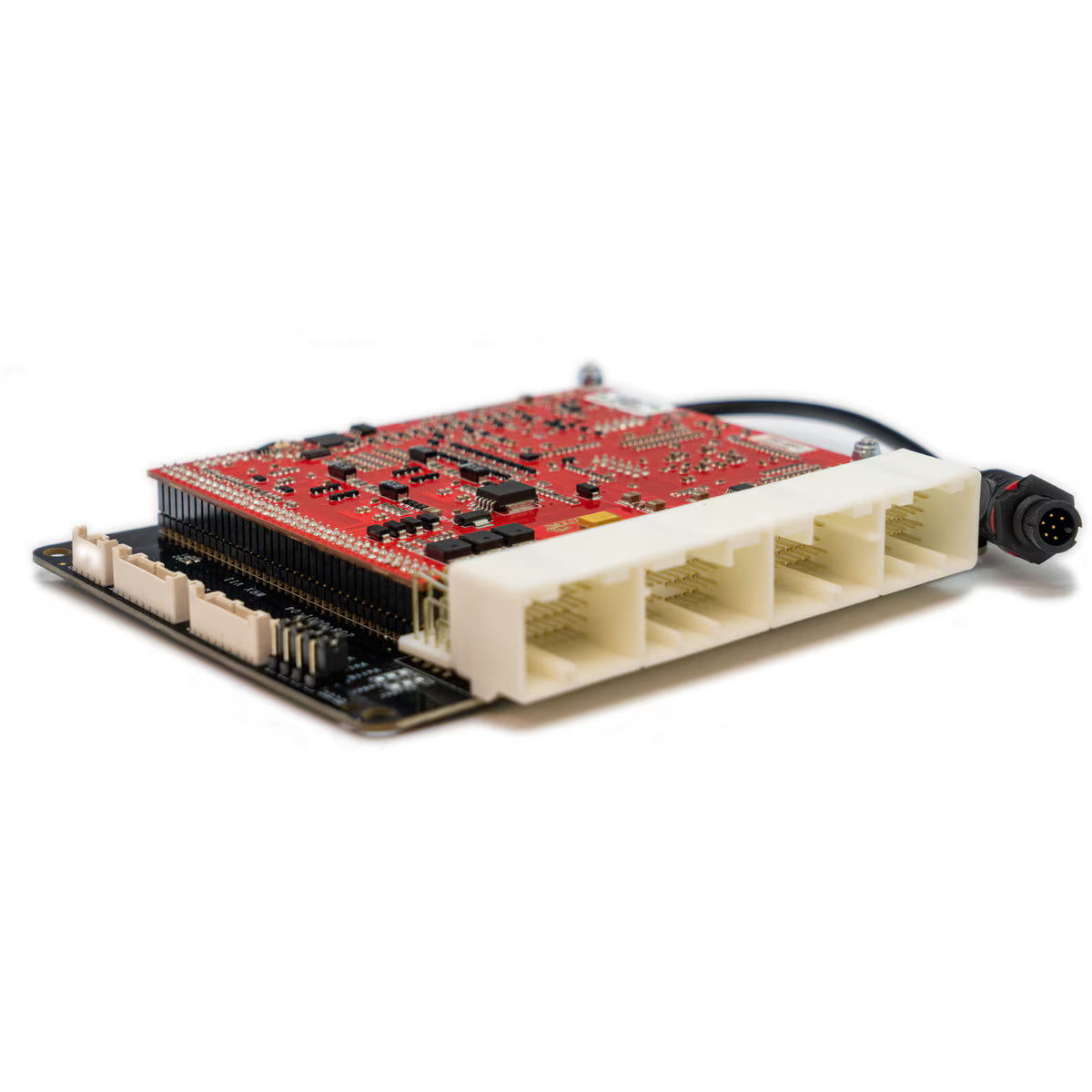

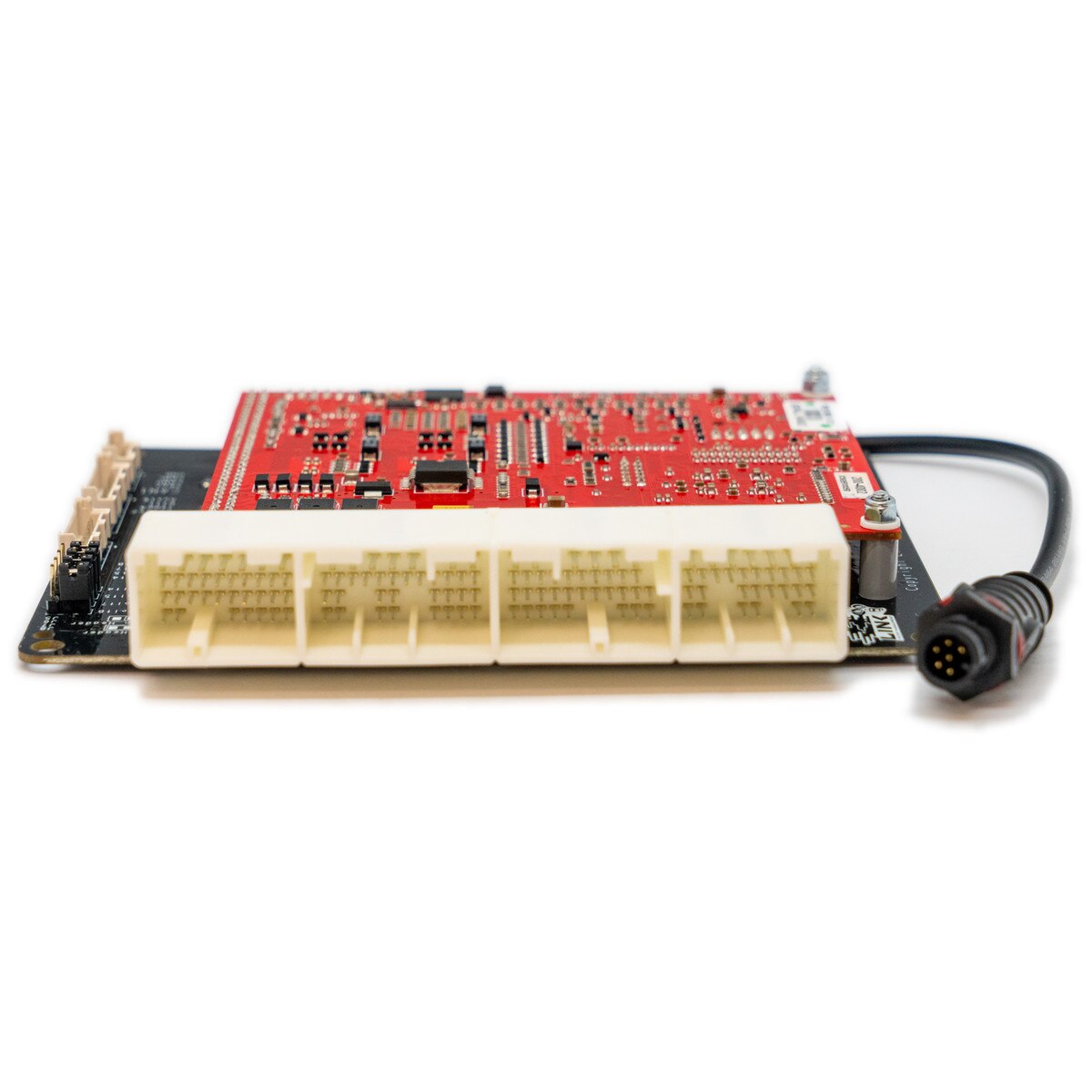

ECU plugin SUBARU WRXLink V11 - WRX11X

Item code 238-4000

AVAILABLE IN 7-10 WORKING DAYS

Easy to install. Affordable. Reliable.

G4X PlugIn control units offer the most advanced engine management technology, designed to easily maximize your car's potential.

This control unit fits the factory OEM housing. Installation of the processing unit is very simple, without having to modify the original wiring harness for the models listed below.

Given the amount of variants on this vehicle, be sure to read the configuration note text in PCLink.

This product supports the following models:

• 2007-2014 WRX and WRX STI with chassis codes GR/GV/GH/GE, for JDM/AUDM/SADM/EURO markets, with EJ20 or EJ25 turbocharged engines.
• USDM 2008-2010 models equipped with the common international Denso ECU pinout**
• 2015-2021 WRX STI with chassis codes VAB/VAF, for JDM/AUDM/SADM/EURO markets, with EJ20 or EJ25 turbocharged engines

**Note: For more details, please refer to the supported models document below. 2011 and later USDM models are supported by our WRX11 USDM ECU.

Please see the supported model list to find out which models are supported and which are not. Alternatively, contact your LinkECU dealer or our 24/7 technical support team .

Important notes

• Before purchasing, please check that the connector matches the connector in the listed photo.
• This control unit only works with manual transmissions.
• Highly recommended air temperature sensor.
• Most factory features are supported, including DCCD, Hill Start Assist, SI Drive, cruise control, camshaft control and ABS.
• Check the Features tab for I/O input and output expansion options.
• In some models the security/immobilizer light may remain on

Note: This plug-in features a new 4-pin powered CAN connector and cannot use the old CANPCB cable for the CAN connection. Use the CANJST4 cable (Link PN 101-0198) to connect your CAN devices. This new 4-pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground to power your CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
