ADU software package 104.1

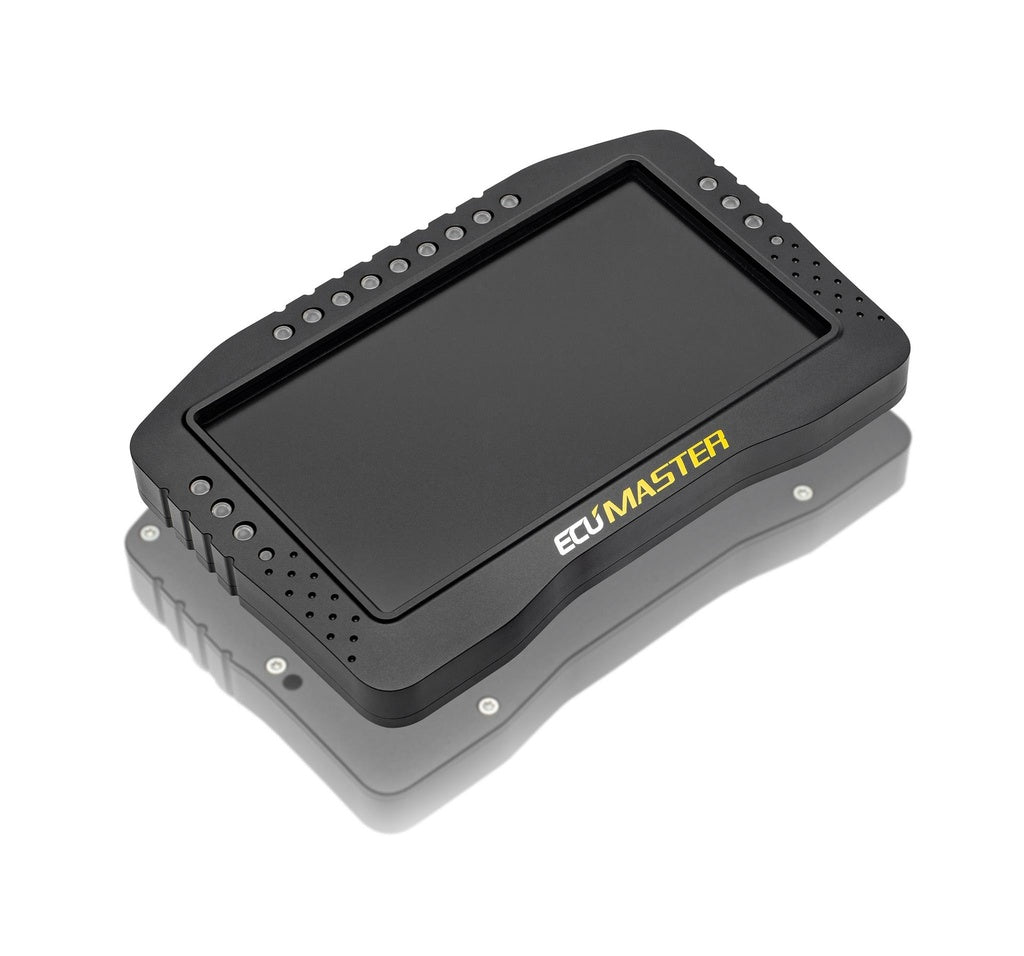

The ECUMaster Display ADU 7 is a multifunction display designed to monitor engine and vehicle parameters in real time. Featuring a high-resolution 7-inch TFT display, it offers excellent visibility in all lighting conditions, making it perfect for motorsports, sports cars, and other high-performance vehicles.

Main features:

• 7-inch TFT display with 800x480 pixel resolution for crystal clear visibility
• Full monitoring parameters such as RPM, temperature, pressure, fuel levels, speed and other customizable parameters
• CAN Compatibility : Supports CAN protocol for easy integration with control units and sensors
• Compact and robust design : resistance and durability guaranteed even in extreme racing environments
• Fully customizable display : Choose from a wide range of screens and layouts
• Visual and audible alarm outputs : ability to set limits for alerts and notifications
• Ease of setup via intuitive interface and dedicated software

Technical specifications:

• Temperature range : AECQ100 GRADE3 (-40 to +85˚C)
• Reverse polarity protection : Yes, internal
• Operating voltage : 6-22V, transient immunity according to ISO 7637

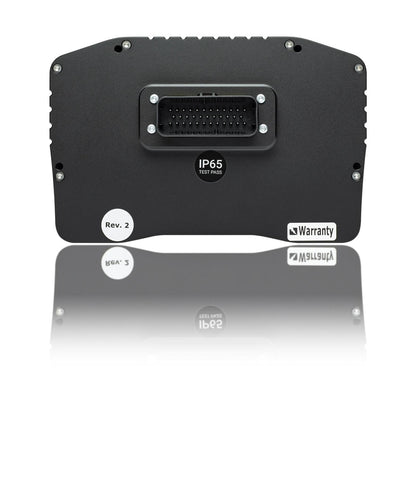

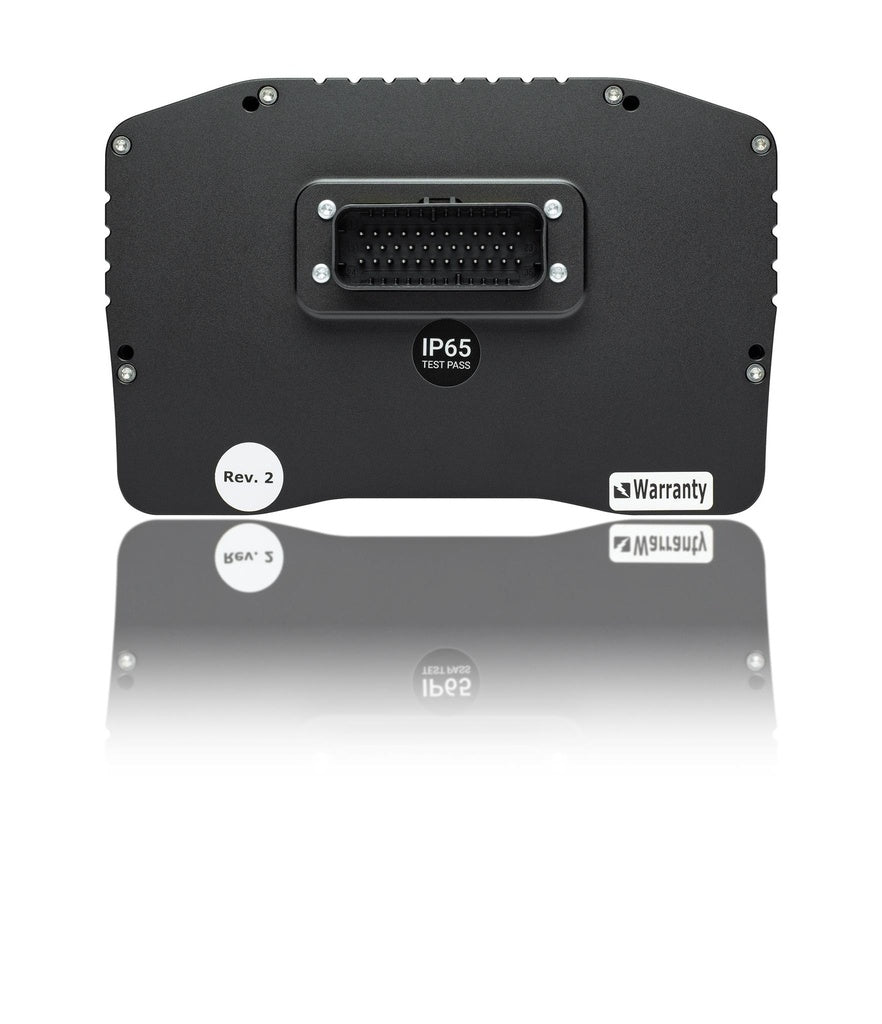

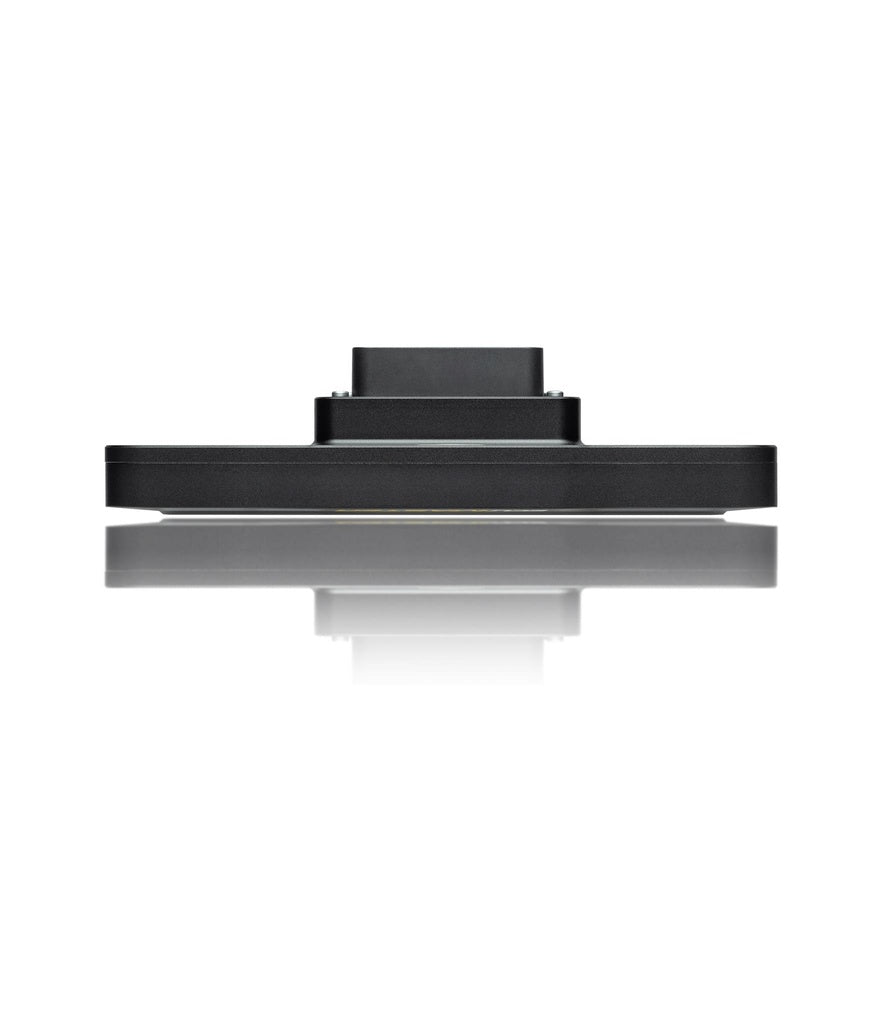

• Housing : Rev.1 -> IP 60, custom CNC machined aluminum; Rev.2 -> IP 65, custom CNC machined aluminum (sealed); ADU7″ AS -> IP 60, custom CNC machined aluminum
• Connectors : 1 x 35-position, AMP Automotive connector
• PC communication : CAN BUS – Ecumaster, Peak or Kvaser interface
• Display type : TFT 800×480
• Display brightness : 5″ – 600 cd/m2, 7″ – 1000 cd/m2
• Weight : 5″ – 408 g, 7″ – 732 g

Input / Output:

• Analog Inputs : 8 inputs, 10-bit, 0-5V, software-controlled 10K pull-up/pull-down resistor. All analog inputs can be used as switches.
• Digital Inputs : 8 digital inputs, software-controlled input sensitivity (VR, Hall), software-controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speed, turbocharger shaft speed. All digital inputs can be used as switches.
• Outputs : 2 low-side outputs (switching to ground), up to 2A, 1 analog output (0-5V) 10 bit
• +5V Output : Monitored 5V output to power external sensors

Communication:

• CAN interface : 2 x CAN2.0 A/B, 250, 500, 1000 Kbps
• CAN Flows : User Defined
• Serial communication : RS232 Rx/Tx, AiM, Ecumaster, Hondata Kpro, Autronic protocols
• USB : Used for logging to external USB memory (USB to CAN module required for programming)

Further details:

• Light-emitting LED : 15 ultra-bright RGB LEDs
• Accelerometer/Gyroscope : 3D accelerometer + 3D gyroscope for vehicle dynamics analysis
• Real-time clock : Yes, battery powered
• Brightness sensor : Yes, for automatic brightness correction
• Temperature sensor : Yes, for monitoring device temperature
