EMU Black Software Package 2.169

Base Map selection

EMU Black stands out as an engine management system first category , designed to handle the most sophisticated and complex engines.

This system is the evolution of our consolidated EMU , with improvements both at the hardware that software , based on thousands of data acquired during the operational life of the EMU.

Ideal for a wide range of applications , the EMU Black It is perfectly suited for:

• Racing vehicles
• Motorcycles
• Boats
• Stationary engines

Key Features of the EMU Black:

• Injection and ignition control for 1 to 12 cylinder engines
• Support for electronic throttle ( drive-by-wire ) and variable valve timing ( VVT )
• Direct drive of up to 6 passive coils or 12 smart coils, without the need for external amplifiers

One of the standout features is the sophisticated drive-by-wire throttle control, which offers extensive control of the accelerator maps , together with advanced control mechanisms of the errors to ensure the safety .

The capabilities of the EMU Black are constantly expanding, thanks to the free firmware updates These updates introduce new features, advanced strategies , activation patterns and data flows CAN .

Unique among ECUs in its price range, the EMU Black includes:

• Wideband lambda input ( Bosch LSU 4.2 and LSU 4.9 )
• External MAP control connector in addition to the integrated 4 bar MAP
• Two inputs for EGT probes for exhaust gas monitoring
• Direct connection for Flex Fuel sensor

Technical Specifications

• Injector outputs : 6 protected 5A outputs, low side + 2 AUX (for 8-cylinder management)
• Ignition Outputs : 6 x 15A outputs (support passive and active coils)
• Auxiliary outputs : 6 protected 5A outputs, low side
• Full Bridge Auxiliary Outputs : Up to 7A, can be used as outputs or H-bridges
• Wideband Heater : Protected low side output up to 5A
• Communication : USB
• Analog inputs : 9 inputs, 10-bit resolution, 0-5V (with protection)
• EGT inputs : 2 K thermocouples
• Heart rate sensors : 2 inputs
• O2 sensor controller : LSU 4.2, LSU 4.9 or Narrow band
• Audio inputs : 3 (primary, 2 cams) Hall/VR
• VSS : 1 (Hall / VR)
• Flex Fuel Sensor Control : Yes
• Digital Inputs (Switch) : 3 inputs, ground switch

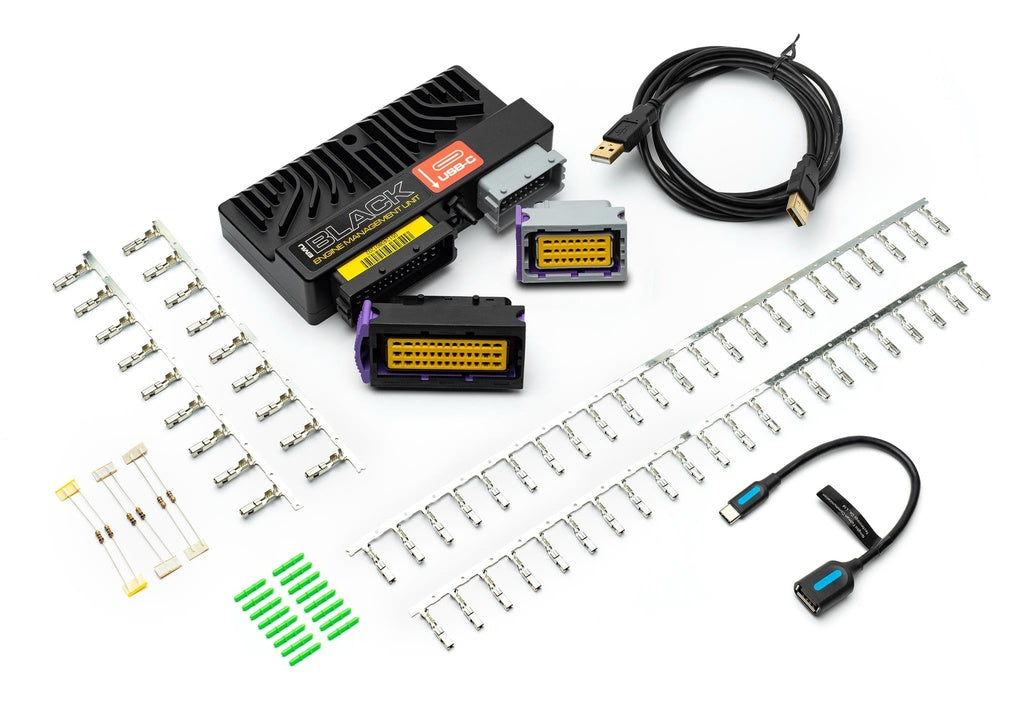

Package Contents

• EMU Black Control Unit
• 2 wiring connectors + crimp pins
• USB cable
• Pinout diagram
