EMU PRO Software 216.0.1

There EMU PRO It's a stand-alone engine management system designed for professional motorsports, and has an extremely broad feature set designed to manage most spark-ignition engines. It offers precise engine management combined with great flexibility to adapt to the most demanding projects.

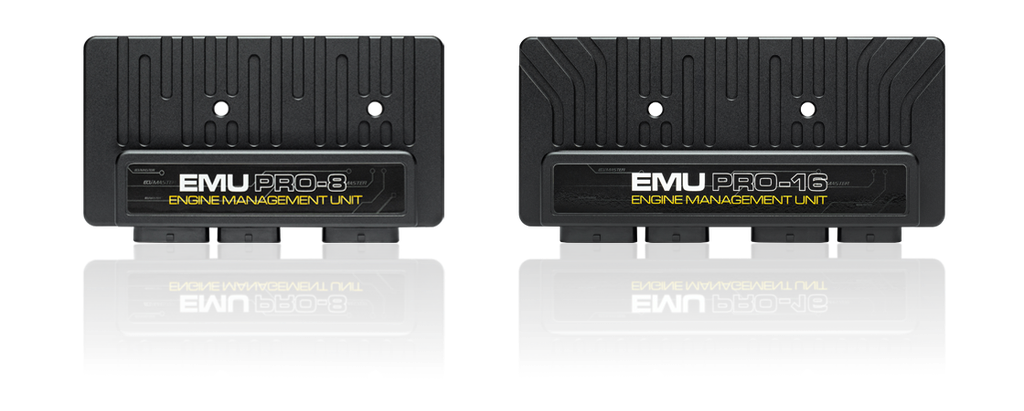

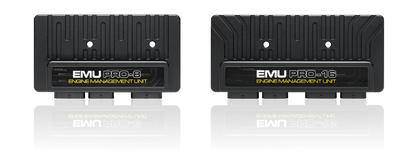

EMU PRO is produced in two versions:

• EMU PRO 16 is aimed at applications with a greater number of IN/OUT

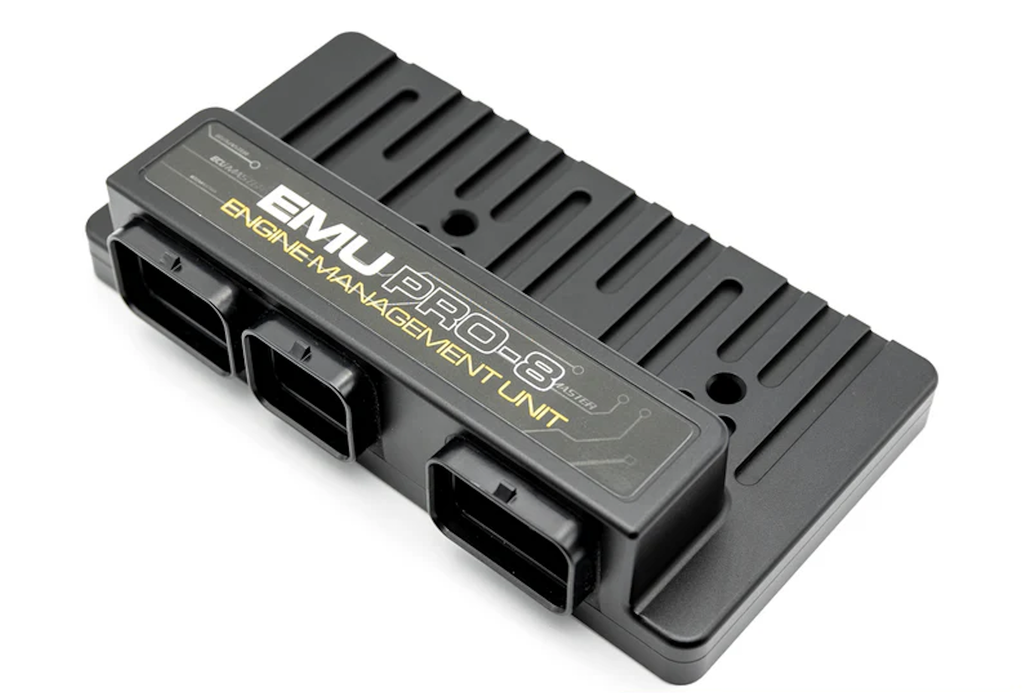

• EMU PRO 8 is aimed at those who do not need many IN/OUT (it still manages engines up to 8 cylinders)

Main features:

• Advanced injection model (includes close-loop, short- and long-term map trim, intake fuel film modeling), allowing for exceptional accuracy in injector control.
• The software is designed to give maximum flexibility to the mapper, it can be customized according to preferences, all tables are resizable and all values ​​on the map axes are editable.
• Flexible I/O management via CanBus, custom functions, numeric functions, simplified interfacing with Power Management Unit (PMU) and Advanced Display Unit (ADU).
• Stand-alone management of PWM solenoids for sequential and paddle shift gearboxes
• High number of IN/OUT to satisfy the most demanding applications

Technical specifications:

• Supports 4-stroke, 2-stroke, rotary (Wankel) engines up to 12 cylinders
• 2 internal controllers for Wideband LSU 4.9 probes, supports up to 4 sensors
• 2 DBW (Drive By Wire) controllers for electronic throttle management with self-calibration
• Injection/ignition tables definable up to 32x32
• Supports up to 4 VVTs with self-calibration
• 2 x CAN 2.0A/B, 1 x LIN bus
• 2 x knock sensors
• Logger on external USB memory
• Datalogging up to 500 Hz
• 8 EGT inputs (can also be used as high-resolution analog inputs)
• Total of 41 outputs and 30 inputs
• IP65 water resistant case made of CNC anodized aluminum
