EVO Link - Mitsubishi EVO 9/X

EVO Link - Mitsubishi EVO 9/X

€2.120,00 EUR
€2.120,00 EUR
Sale Sold out
Taxes included.


Easy to install. Affordable. Reliable.
 G4X PlugIn control units offer the latest engine management technology, designed to easily maximize your car's potential.

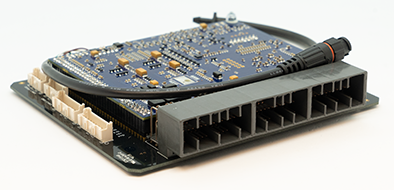

 This control unit fits inside the factory OEM housing. Installation of the processing unit is very simple, without having to modify the factory wiring harness for the models listed below.

 This control unit is designed for the EVO 9 4G63 engine.

 Please check that the connector matches the connector in the photo before purchasing.
 This control unit only works with manual transmission.
 Includes an integrated 7 bar MAP sensor
 Most factory features are supported
 Check the features tab for I/O expansion options

 Suitable applications for the 204-4000 automotive computer unit:

 CT9A Lancer Evolution 9, 2005-2007

 CT9A Lancer Evolution 8, 2003-2005 ONLY with 3-connector ECU

Any EVO8 car with a 3 pin ECU will also require this ECU.
Click here to download the full Specifications PDF.
G4X PlugIn Key Features (where applicable):
Up to 6D fuel and ignition mapping
Precision closed loop cam control (four cam, independent control)
Sequential fuel delivery
Digital triggering, all OEM patterns
OEM idle hardware supported
5D boost control with three switchable tables
Motorsport features - antilag, launch, flat shift
Continuous barometric correction (on board)
CAN port
QuickTune - automated fuel tuning
Individual cylinder correction
USB tuning cable included
Stats recording into on-board memory
Gear compensations for spark, boost and fuel
Real time selectable dual fuel, ignition and boost maps
Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
Boost control referenced to gear, speed or throttle position
512 mega bytes data logging memory within data storage unit
Staged injection
Knock with "windowing"

I/O Expansion Options
The following expansion connector inputs/outputs are provided:
Expansion Connector 1:
Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
DI 9 Digital Input
OF 10 Digital Input
Aux 11 Auxiliary Output
An Volt 11 Analog 0-5V input
An Volt 8 Analog 0-5V input
An Temp 4 Temperature sensor input

Expansion Connector 2:
Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
Aux 9 EThrottle - can't be used as an Aux out
Aux 10 Auxiliary Output
An Volt 6 Analog 0-5V input
An Volt 7 Analog 0-5V input
An Volt 9 Analog 0-5V input
An Volt 10 Analog 0-5V input
