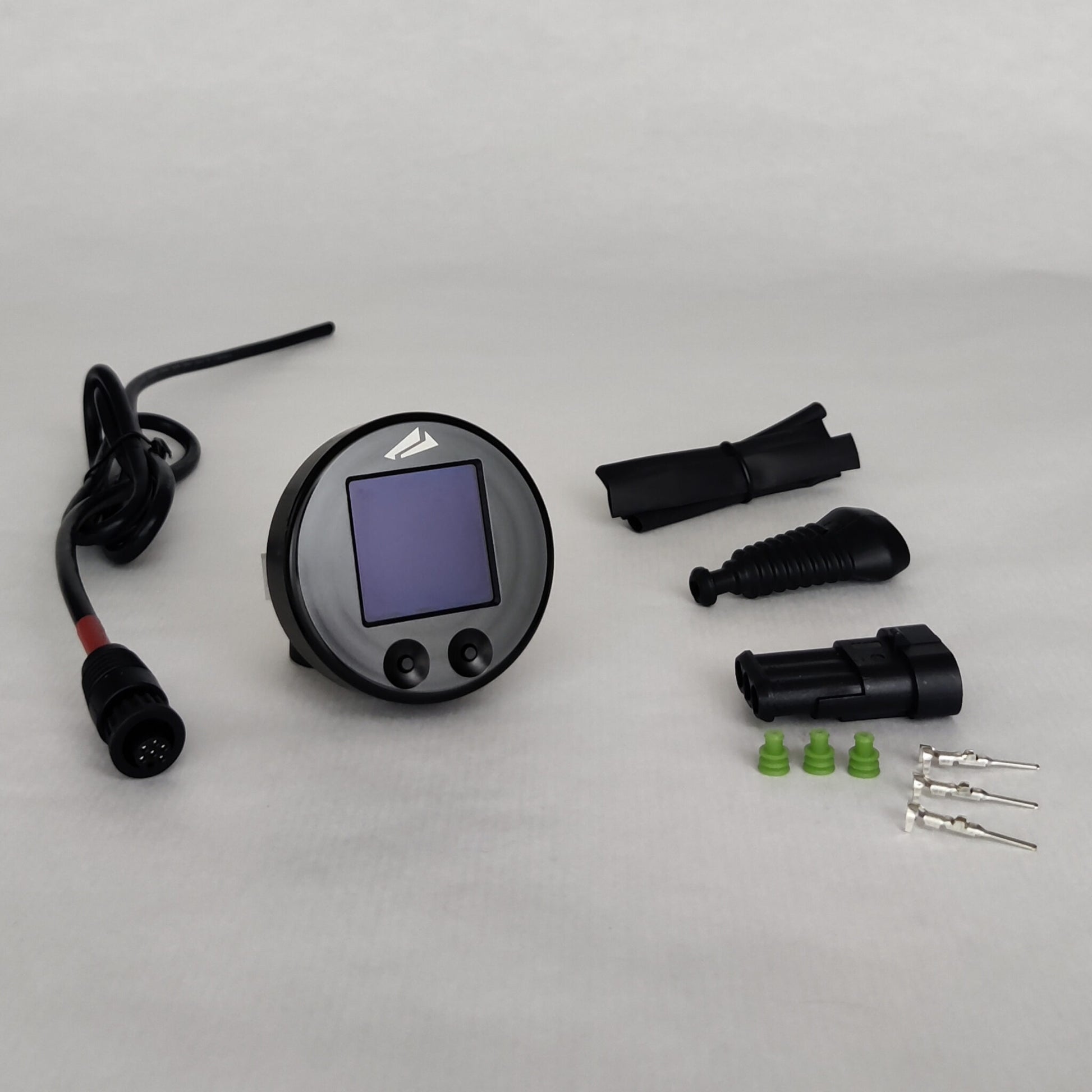

Gear Indicator OLED heep

Always an eye on the current gear

With the Heep Technology OLED gear indicator, you always know exactly which gear is currently engaged.

 Description
The OLED gear indicator is the perfect complement to the Heep Technology sequential gearbox:

 Large 1.5" display to show the gear engaged
 OLED technology is easy to read even in direct sunlight
 Auto-dimming function: to avoid dazzling the driver in the dark
 11 selectable colors for the display
 Fits 52mm round indicator mounts

 Specifically for use with junction box gearboxes, several gear cut-off signals can be sent to the control unit:

 Analog signal: Step 2.5 -> 0 V; Step 2.5 -> 5 V
 Separate digital signals for upshifting and downshifting: +5 V with separately adjustable threshold values
 Additional output of the 0-5V gear sensor analog signal

 The optional gear display control unit cable is also required to connect the OLED gear display to a control unit.

Delivery time: 4-8 weeks
