Horus fireproof sheath for pipes and wiring
Horus fireproof sheath for pipes and wiring
Couldn't load pickup availability

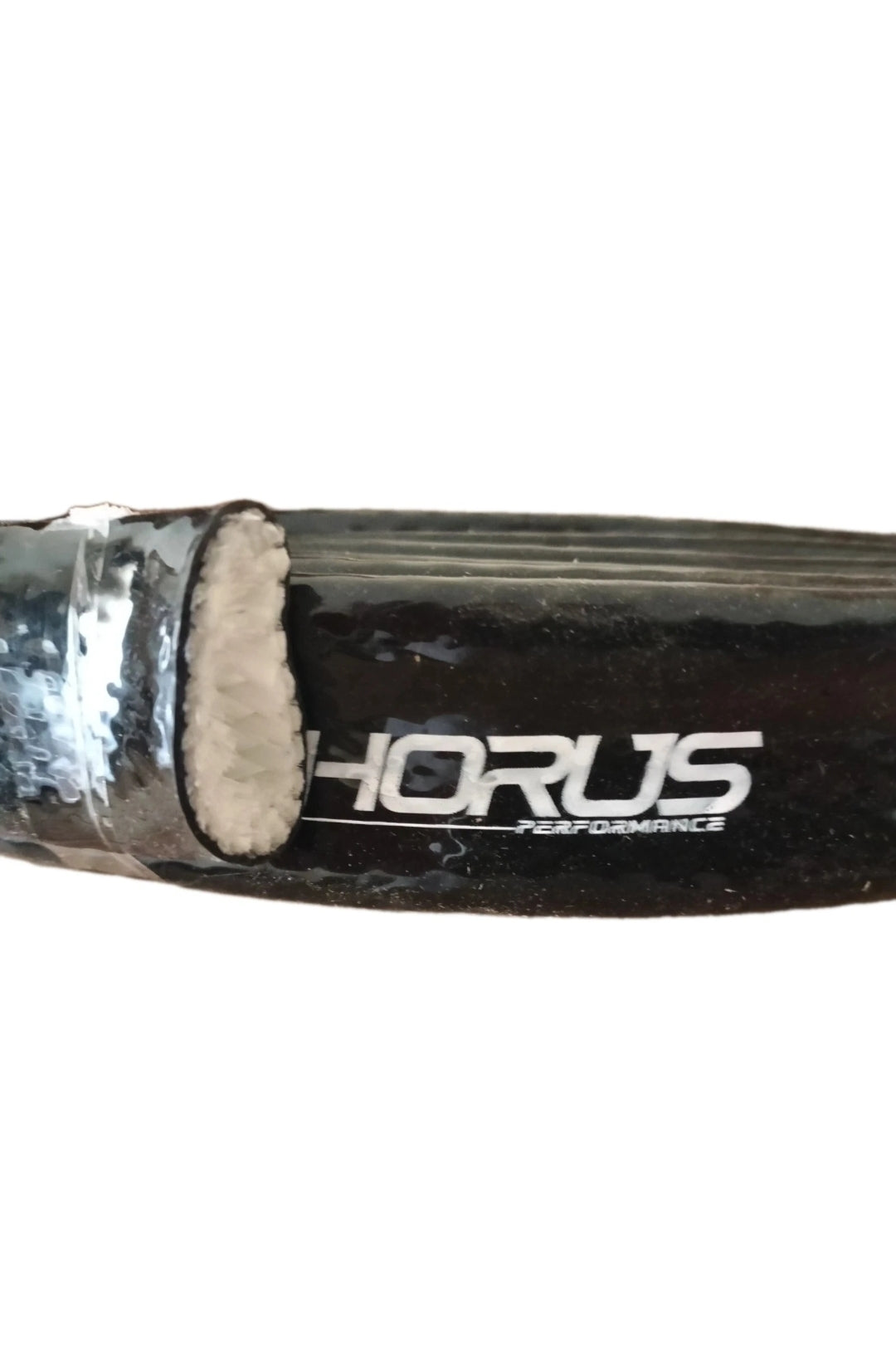

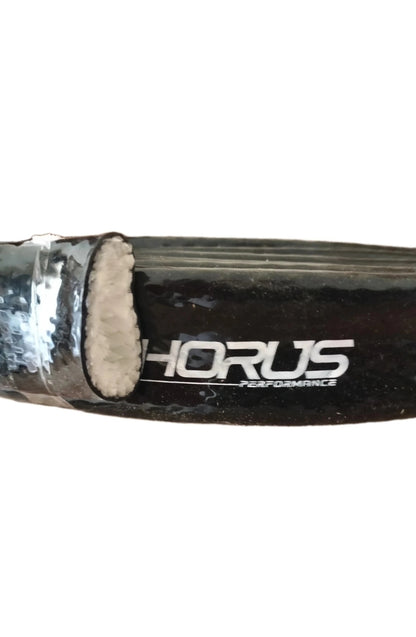

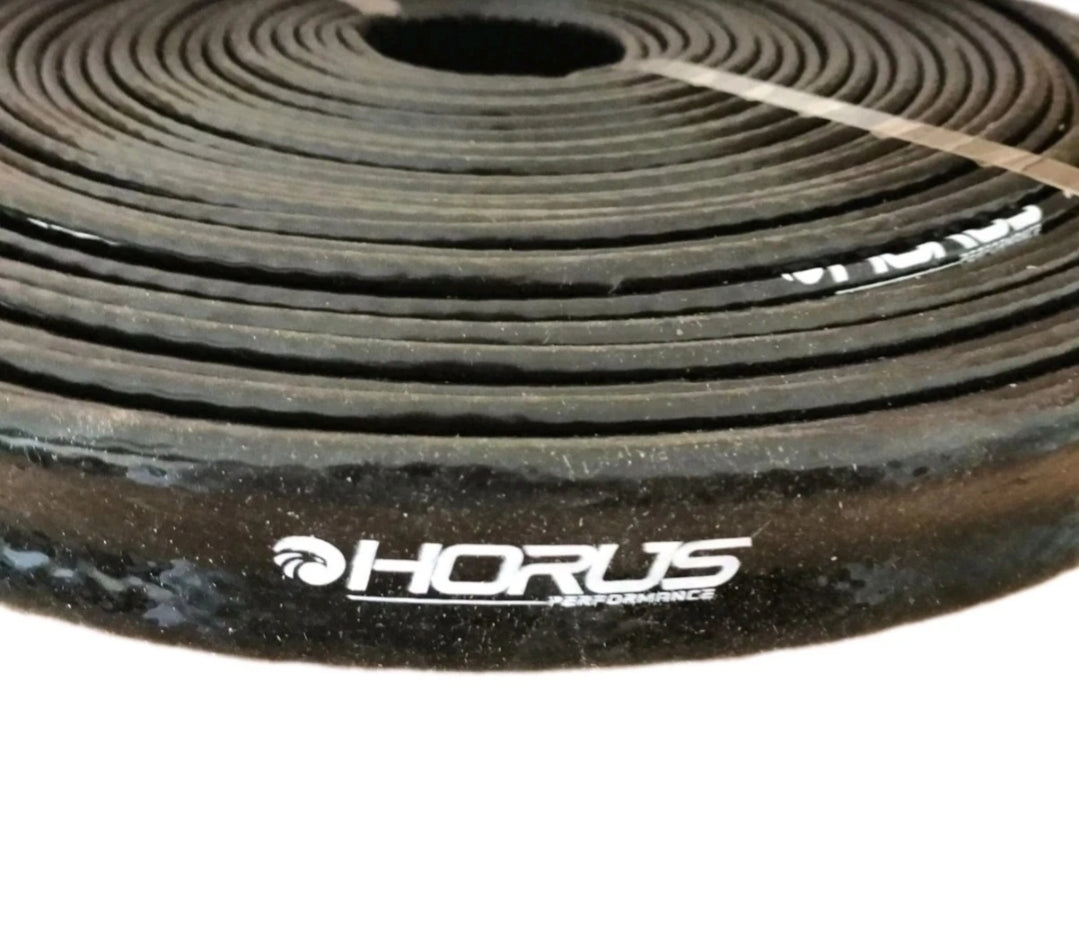

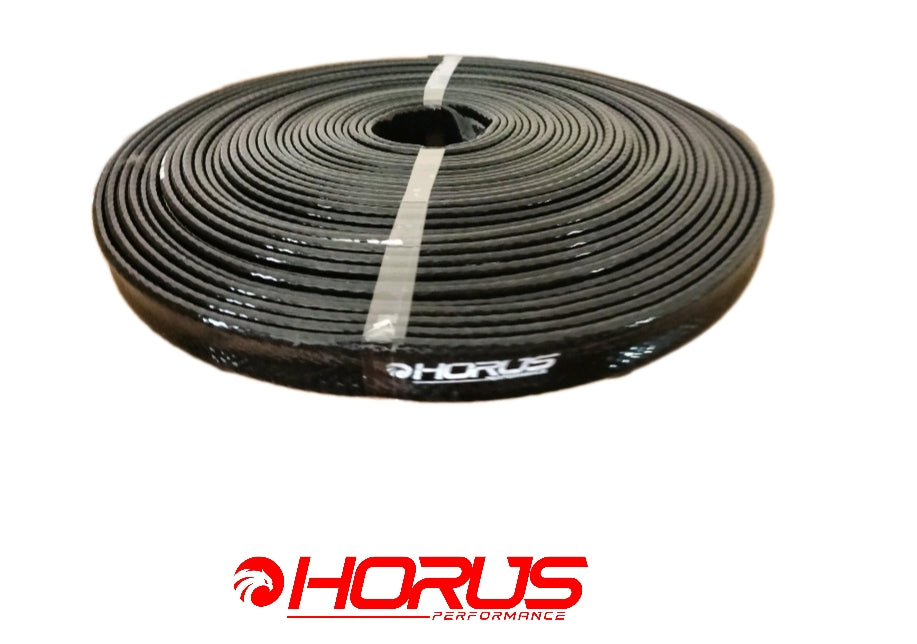

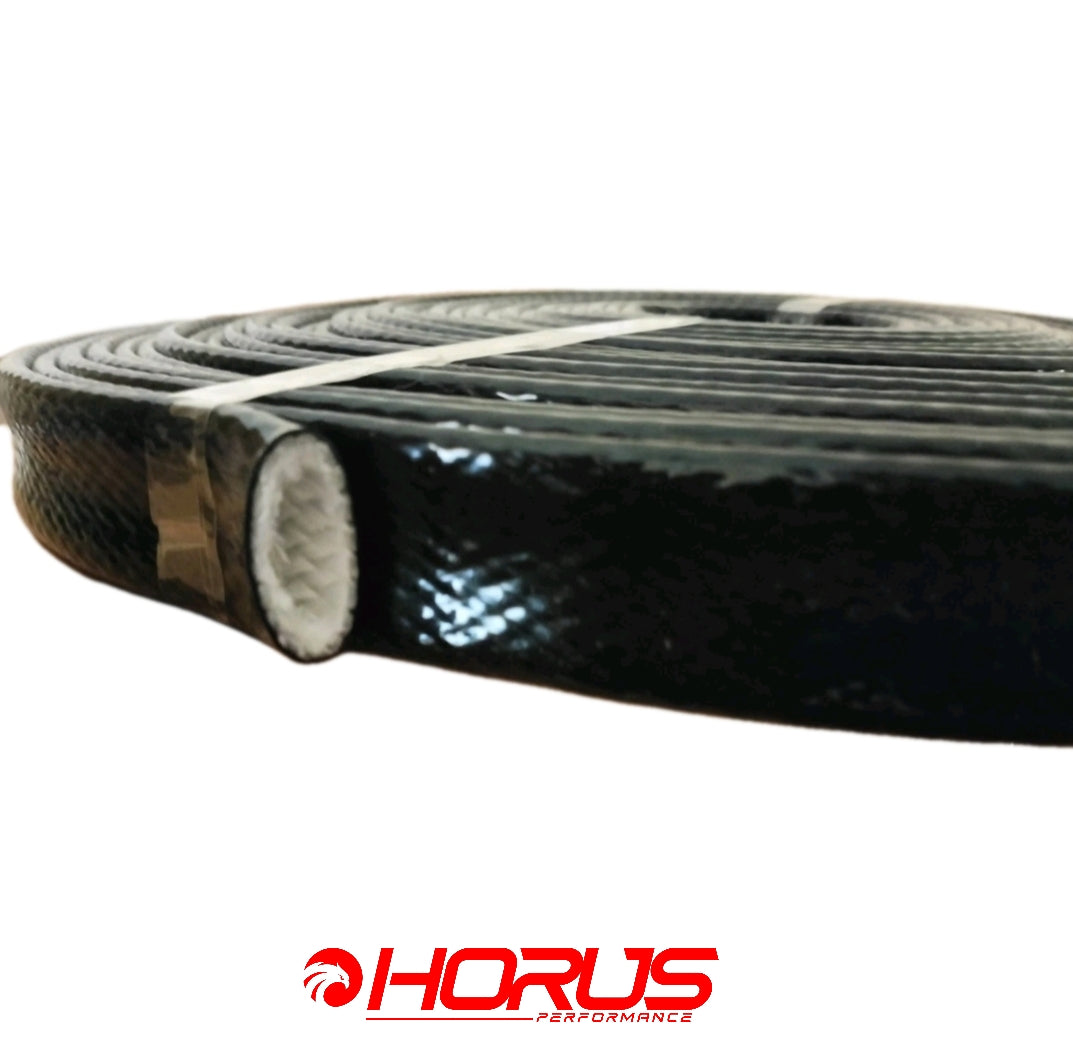

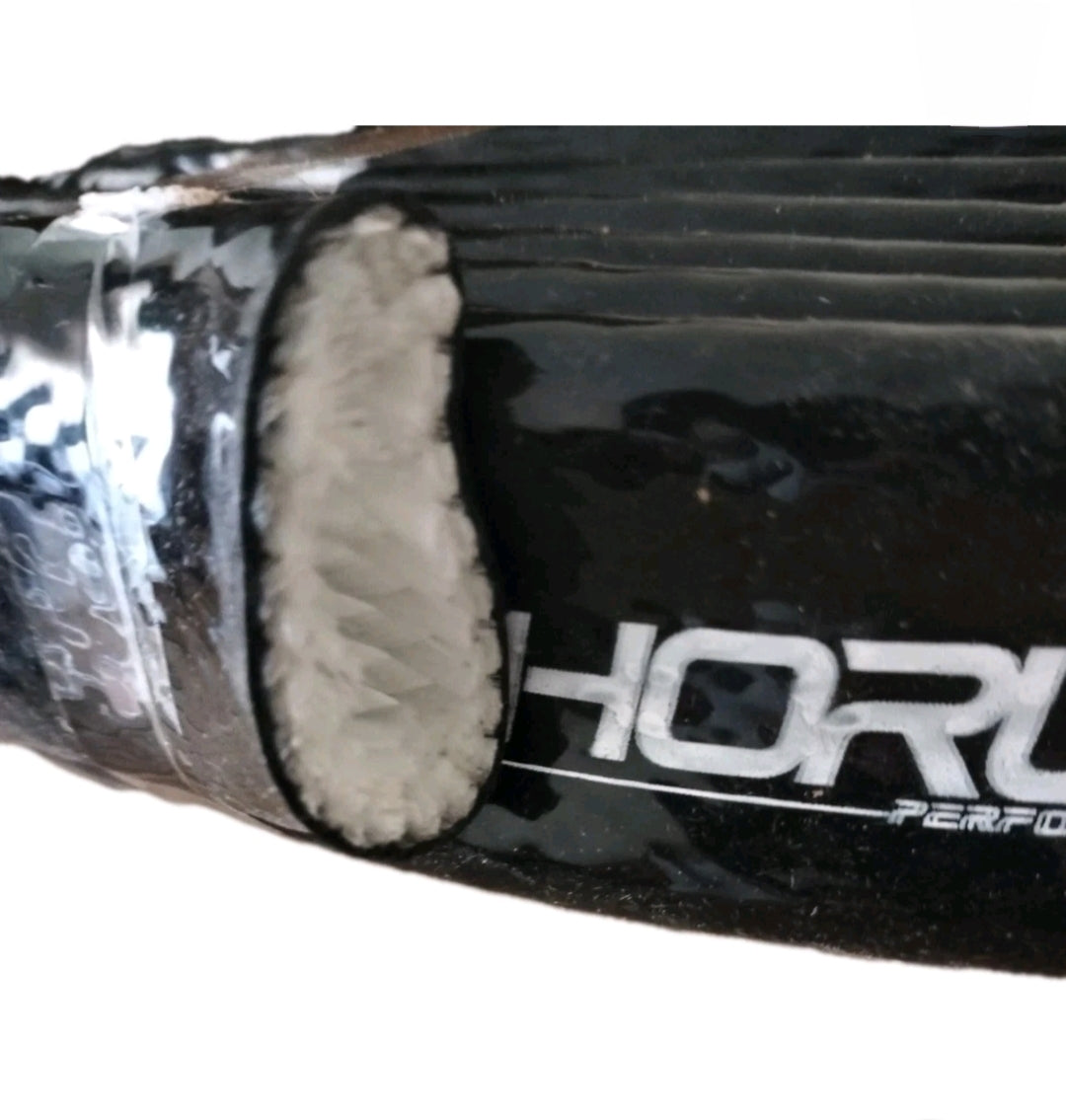

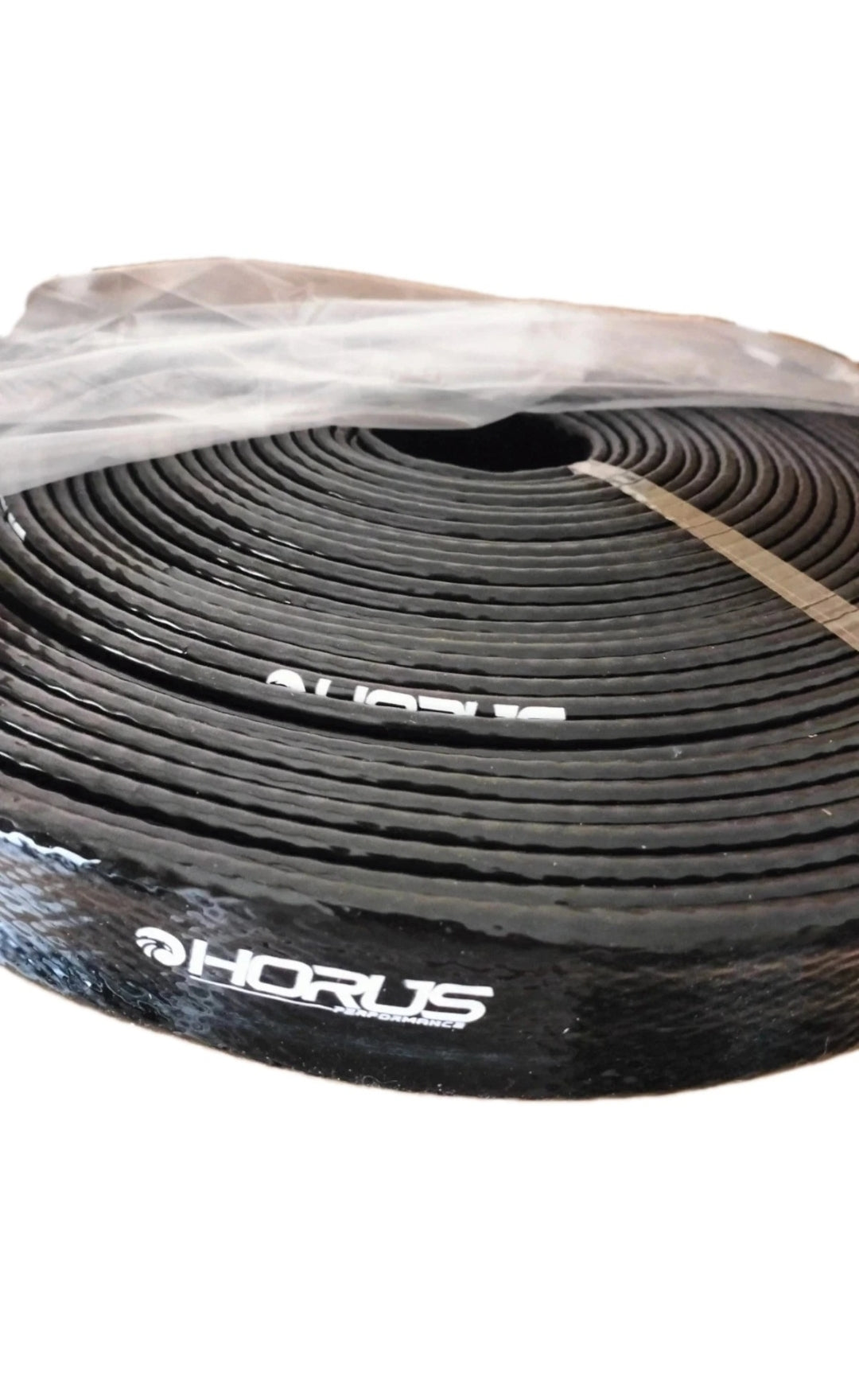

FIREPROOF SLEEVE for electrical wiring or aeronautical pipe protection.
Silicone exterior, fiberglass interior
Quantity: 1mt
HORUS aeronautical fireproof thermal protection
NB: by ordering multiple quantities, a single piece will be shipped
Main applications:
Wires, cables, and pipes in high ambient temperatures. This fire sleeve will provide continuous protection at an operating temperature of 260 degrees C. It can withstand a molten metal plunge of 1200 degrees C. C
|
Fiberglass Base Substrate In fiber of Type: AND Of glass Specification Severity: 2.54-2.69 Breaking Tenacity: 1.71 gf/TEX. Std. 1.71 gf/TEX Wet Tensile Force: 450,000-500,000 Psi. Of rupture Stretching: 4.81% Std. 4.81% Wet Elastic Recovery: 100% Average Rigidity: 2824.3 cn/TEX Heat Effect: Does not burn; Maintains 75% tensile strength at 650°F (343°C); softens at 1500-1800°F (732-877°C); Melts at 2200-2300°F (1121-1182°C) Acid and Alkali Resistance: Fairly good resistance to acids and alkalis. Good resistance to most alkalis. Bleach and Solvent Resistance: Unaltered. Silicone Rubber Coating durometer, Shore TO: Initial; 35 Aged 240 hours at 200°C; 45 Tensile Strength (psi): Initial; 875 Aged 240 hours at 200°C; 800 Elongation %: Initial; 500 Aged 240 hours at 200°C; 200 Flammability, UL94; V-1 Dielectric Strength (volts/mil); 485 Tested Range: 8.0-12.5 kV Result: NEMA TF-1 Grade A Dielectric Temperature capacity: Rated for 500°F (260°C) continuous exposure up to 2000°F (1093°C) for 15-20 minutes Up to 3000°F (1650°C) for 15-30 seconds Fluid Resistance Phosphate Ester Hydraulic Fluids MIL-H-5606 Hydraulic Fluid MIL-T-5624 Fuel Jet MIL-L-6082 lubricating oil MIL-L-7808 MIL-L-23699 lubricating oil lubricating oil MIL-H-83282 hydraulic fluid |
