52mm OLED CAN Link Indicator
52mm OLED CAN Link Indicator
Couldn't load pickup availability
AVAILABLE IN 7-10 WORKING DAYS

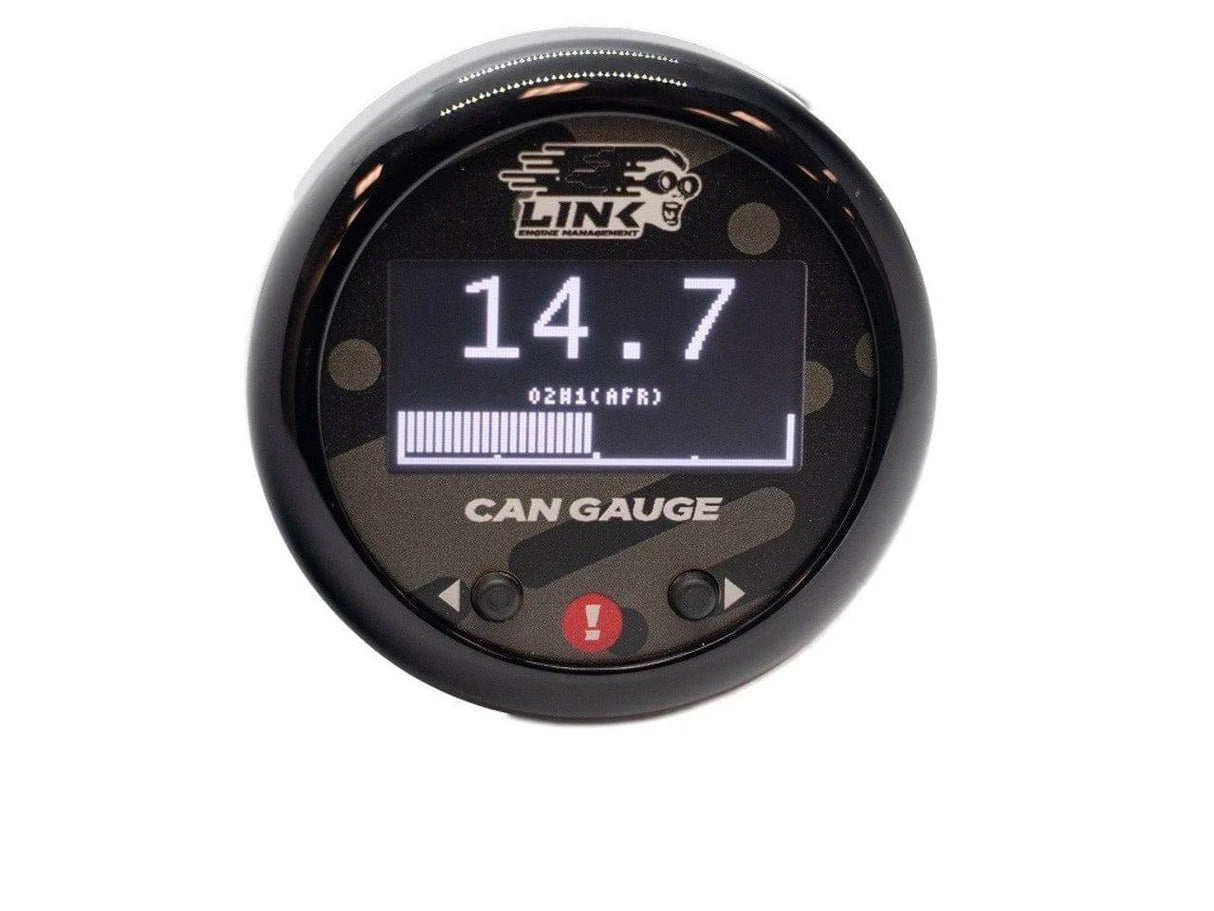

The Link CAN Gauge is a compact OLED gauge for displaying real-time data from your Link ECU's CAN stream. It can display supported parameters such as boost pressure, air/fuel ratio, coolant temperature, fuel pressure, ethanol content, and more.

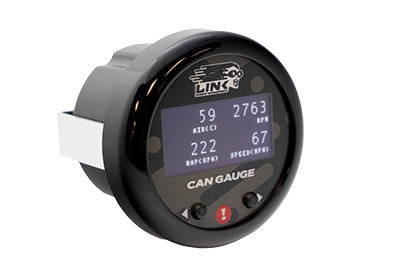

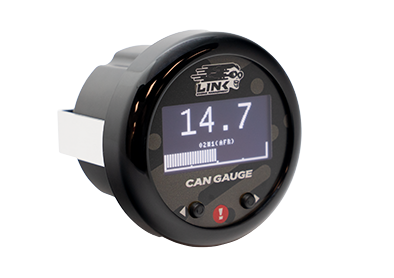

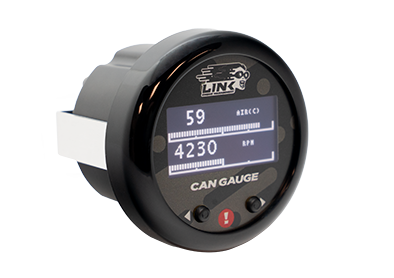

The high-contrast OLED display is bright enough for indoor use and dims at night. You can configure one, two, or four gauge layouts across up to 10 different pages. You can scroll through the pages using the easy-to-access front buttons. You can create customizable warnings, such as high coolant temperature, which activate a special warning screen and a bright LED on the gauge face.
Easily customize your CAN gauge to display the data you want with the free downloadable app (compatible with Android 4.4 or later and Apple iOS). The easy-to-use app, compatible with smartphones or tablets, lets you customize your gauge wirelessly in minutes and is much easier than configuring it with just the front buttons!
Package Contents
1 x 52mm OLED CAN meter
1 x DTM4 CAN Meter Connection Cable
1 x DTM4 Mating Connector Kit
1 x Mounting Bracket
1 x Quick Start Guide
2 connecting stickers
| • View real-time data, directly from your Link control unit. • It has a high-contrast OLED display, which dims at night. • Fully customizable screens, 1, 2 or 4, on up to ten different pages. • Customizable warning screens and LED light for low or high alerts such as low oil pressure or high boost pressure. • Pre-configured to work with all Link G4+/G4X/G5 wired and plug-in control units. • Configurable via smartphone with included app. • Compact 52mm (2 inch) size in high quality injection molded housing. • Connects two or more units together in a daisy chain. • Extremely easy to install and use. • Compatible with CAN Link connection cables |
