Link MXG Strada 7" - Race Edition

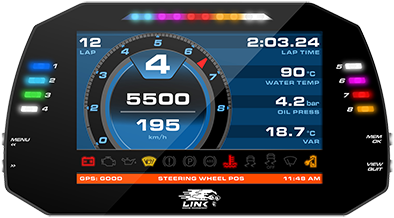

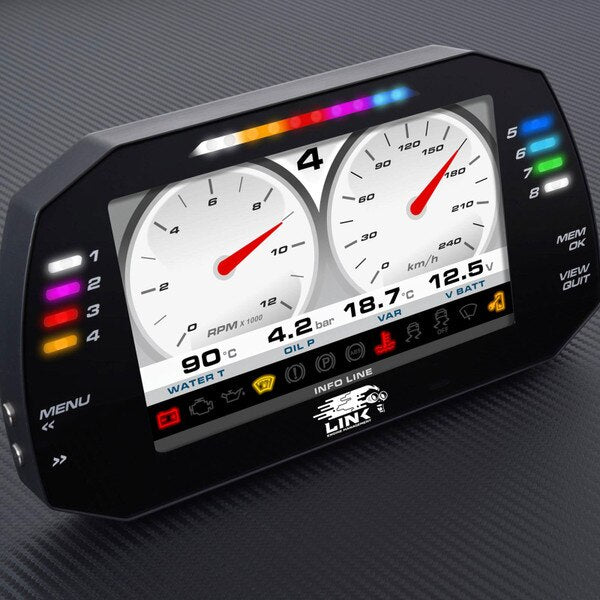

The Link MXG Strada Race Edition dashboard features customizable shift lights, eight flexible warning LEDs, and a high-contrast 7-inch TFT display. Visual quality is always optimal thanks to the ambient light sensor that automatically adjusts the display brightness.

The MXG Strada's 10 multi-color RGB shift lights can be customized to your liking to define the rpm threshold for each individual gear.

The same flexibility applies to the eight configurable RGB alarm LEDs. They can be configured to turn on/off based on analog or digital inputs, control unit values, expansion values, math channels, or, optionally, GPS information (GPS module available). You can choose conditions and colors, and select a steady or flashing alarm and flash frequency. You can also configure an accompanying text message along with alarm priorities.

The dashboard is extremely easy to use, with side buttons to navigate through a library of preset display styles, depending on the information you want to see, and the desired layout. The screen can display all the real-time information detected by the ECU, such as RPM, speed, water temperature, oil pressure, and much more.

The MXG Link connects directly to your Link ECU via the pin kit and wiring harness provided in the box.

The dashboard can be customized via ECU PC Link and Aim Technologies Race Studio 3 software.

The MXS Link connects directly to your Link ECU via the pin kit and wiring harness provided in the box.

For use with plug-in control units, you will need the CANPCB and CANF connectors (purchased separately).

Included in the package:

Link MXG 1.2 Road

USB cable

Standard 14-pin cable

23-pin connector + contacts

GPS module available separately.

Power consumption: 400 mA

Dashboard dimensions: 237×127.6×26 mm

Weight: 950 g

Waterproof: IP65
