LINK MXS Strada 5" - Race Edition
LINK MXS Strada 5" - Race Edition
Regular price
€1.445,00 EUR
Regular price
Sale price
€1.445,00 EUR
Unit price
per
Taxes included.
Couldn't load pickup availability
Link MXS Strada 5-inch dashboard, with AIM technology.
AVAILABLE IN 7-10 WORKING DAYS

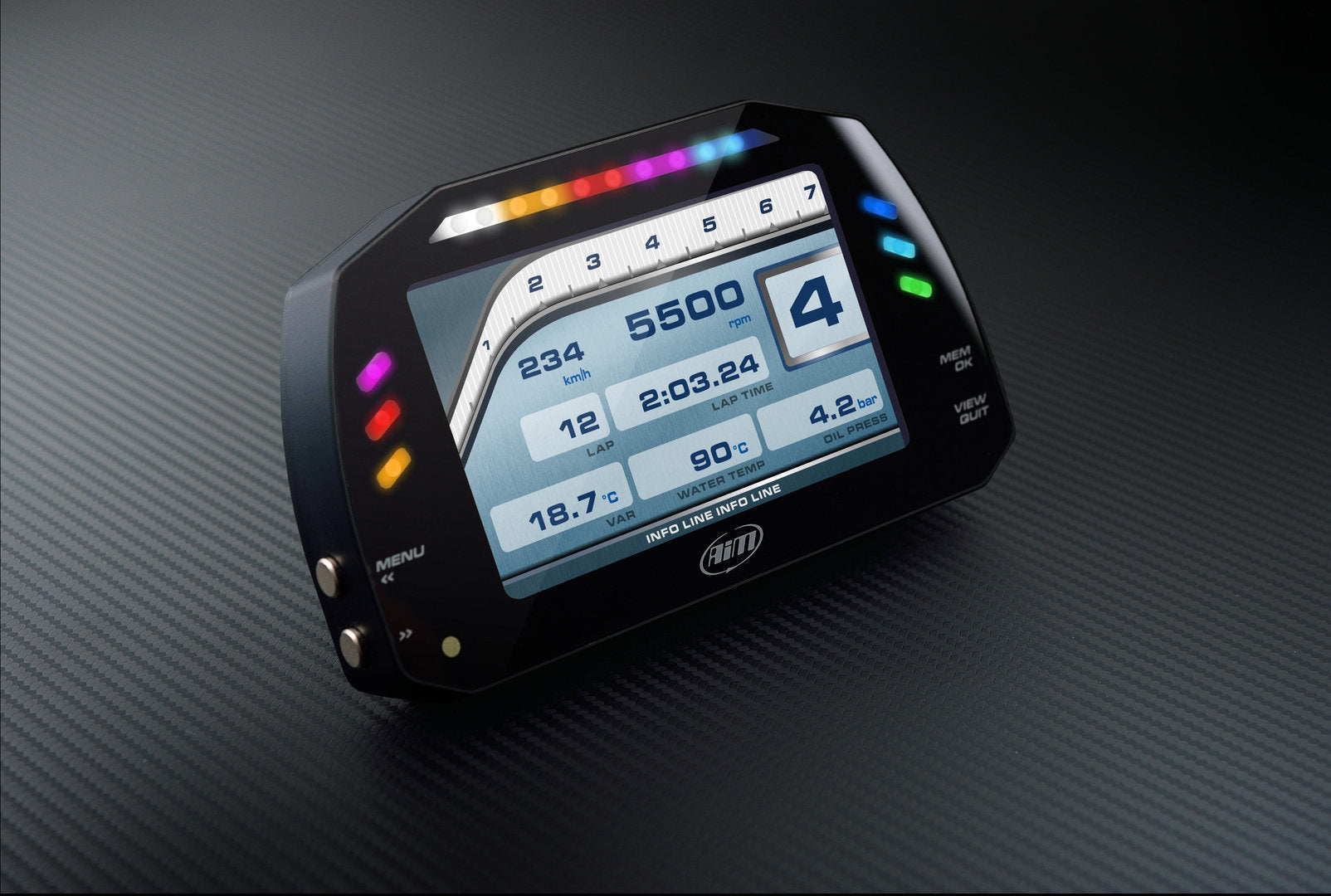

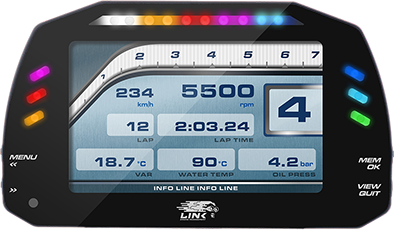

The Link MXS Strada Race Edition is a 5-inch color display dash featuring 10 RGB shift lights and six customizable LED warning lights. The dash is pre-configured to work with all Link G4+/G4X wired and plug-in control units. See the features tab for more information.
This listing is for the "Race Edition", see the "Street Edition" if you are looking for a dashboard for road use.
The Strada dashboard is also available in 7-inch (MXG) and 10-inch (MXT) versions.
|
The Link MXS Strada Race Edition dashboard features customizable shift lights, flexible alarms, and a high-contrast 5-inch TFT display. Visual quality is always optimal thanks to the ambient light sensor that automatically adjusts the display brightness. The MXS Strada's 10 multicolor RGB shift lights can be customized to your liking to define the rpm threshold for each individual gear. The same flexibility applies to the configurable RGB alarm LEDs. They can be configured to turn on/off based on analog or digital inputs, control unit values, expansion values, math channels, or, optionally, GPS information (GPS module available). You can choose conditions and colors, and select a steady or flashing alarm and flash frequency. You can also configure an accompanying text message along with alarm priorities. The dashboard is extremely easy to use, with side buttons to navigate through a library of preset display styles, depending on the information you want to display and the layout. The screen can display all the real-time information from the ECU, such as RPM, speed, water temperature, oil pressure, and much more. The MXS Link connects directly to your Link ECU using the included pin kit and wiring harness. For use with plug-in ECUs, the CANPCB and CANF connectors are required (available separately). The dashboard can be customized via the Link ECU PC Link software and Aim Technologies Race Studio 3. Included in the package: USB cable Link MXS 1.2 Strada Standard 14-pin wiring 23-pin connector + contacts GPS module available separately. |
| SPECIFICATIONS: Display 5 inch TFT screen Resolution 800x480 pixels Contrast 600:1 Brightness 700 cd/m2 - 1,100 lumens Ambient light sensor YES Alarm LEDs 6 RGB freely configurable Gear shift lights 10 integrated RGB LEDs freely configurable CAN connections 2 ECU connections POWER Analog inputs 8 fully configurable, max 1,000 Hz each Digital inputs 1 speed input, coil RPM input Digital outputs 1 (1 A max) According to CAN YES Body Anodized aluminum Buttons Metallic Connectors 2 AMP connectors + 1 Binder connector Power consumption 400 mA Dimensions 169.4x97x23 mm Weight 480 grams Waterproof IP65 |
