RACEPAD Link - CAN Steering Wheel Keyboard

RACEPAD Link - CAN Steering Wheel Keyboard

€1.117,00 EUR
€1.117,00 EUR
Sale Sold out
Taxes included.

AVAILABLE IN 7-10 WORKING DAYS

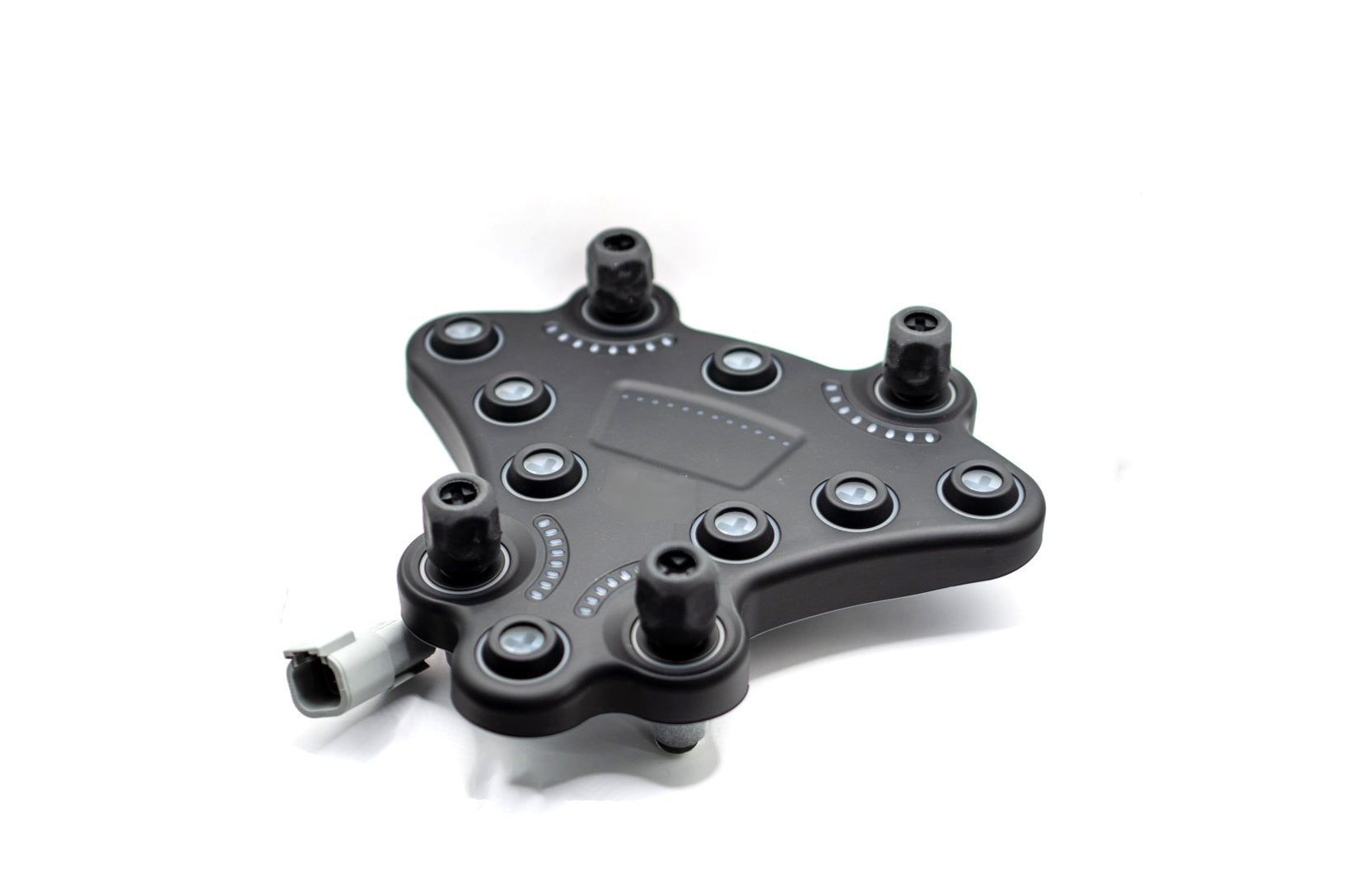

LINK RACEPAD is the ultimate CAN-bus steering wheel keypad, designed to take your racing experience to the next level. With 4 rotary dials and 8 easy-to-reach buttons, RacePad is the ideal complement to any race car, allowing both professional and amateur drivers to fully customize their driving style thanks to custom button icons and LED color selection.

See the features tab for more information

Package Contents:
1 x RACEPAD (steering wheel not included)

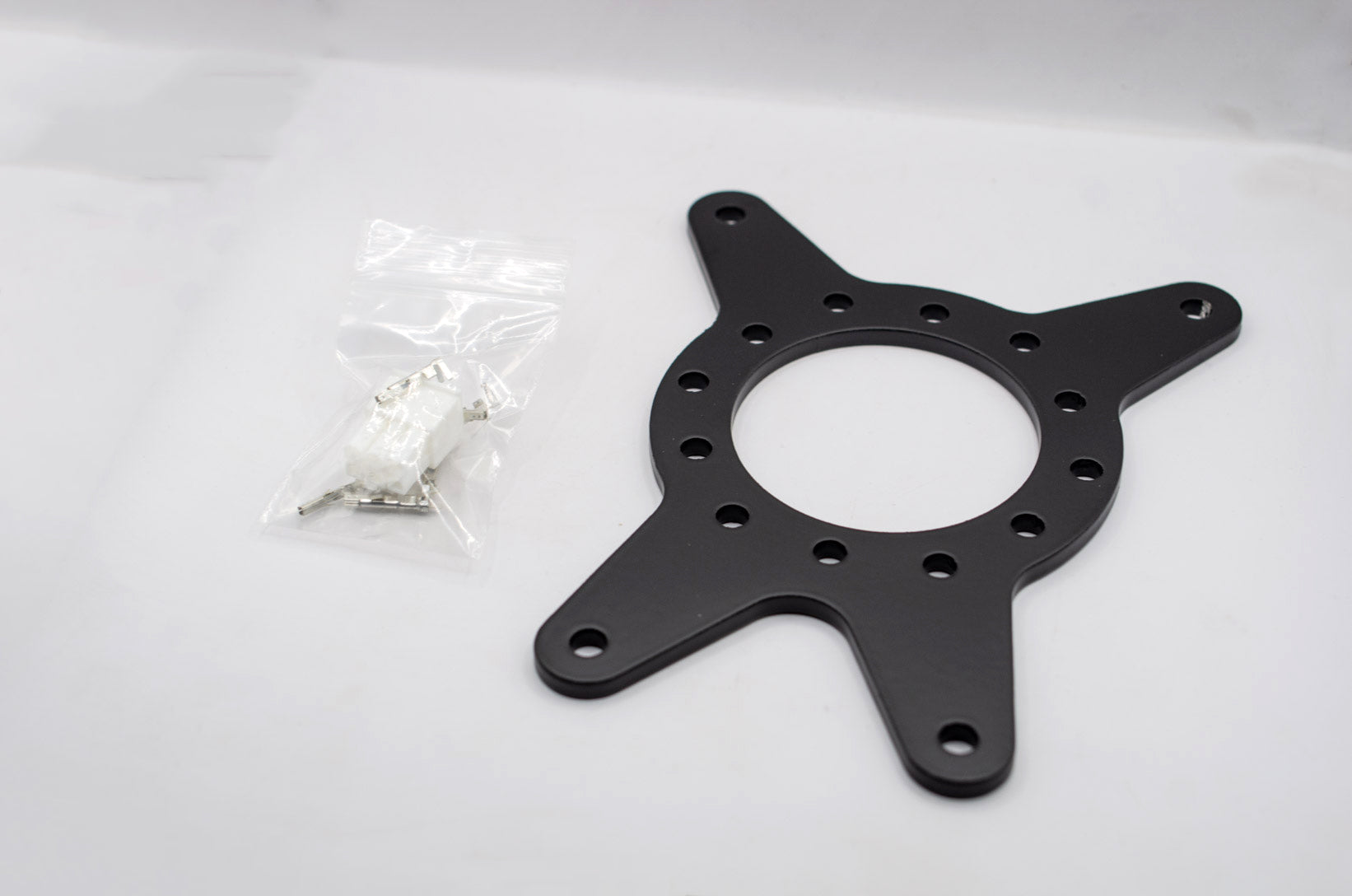

1 x Mounting Bracket
1 x DTM4 Mating Connector Kit

1 x Molex Mating Connector Kit
1 x Connection Sticker
1 x Keyboard Button Insert – Link Logo

Note: Racepad comes with blank button inserts; inserts must be selected and purchased individually. One Link ECU logo button insert is included loose in the package.

  • 8 backlit buttons and 4 rotary knobs
  • 4 analog inputs for additional sensors or switches
  • Configurable CAN with PC connection G4X/G5 – modification
    the color of the LED backlight of the buttons,
    the color of the indicator ring of the individual buttons, programmable to show the change of state,
    flashing option, multiple modes including momentary, locked
    and lever

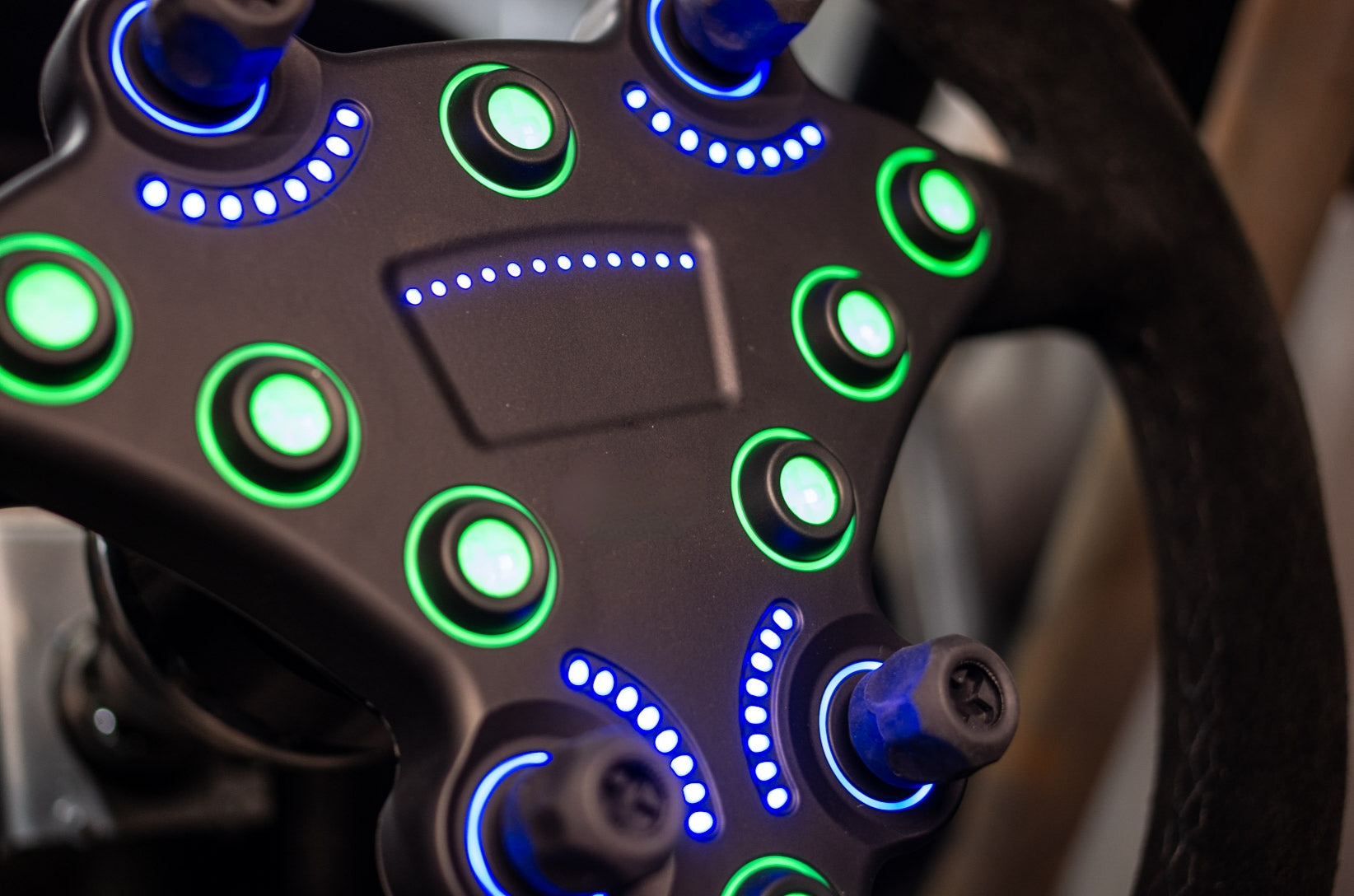

  • 8 blue LED lights on the rotary encoders while all 8
    buttons have customizable RGB LED rings
  • CAN Bus communication with
    the engine management system
  • Compatible with all G4X and G5 control units
  • Customizable button inserts: the system for replacing individual inserts makes it simple and economical
    changing the keyboard layout
  • 12 fixed LEDs in the center can be used for
    Configurable feedback: RPM, etc.
  • Includes a mounting plate adapter to support
    common aftermarket steering wheel bolt patterns,
    including MOMO (6x70 mm) and Nardi (6x74 mm)
  • DTM4 connector for CAN and power, Molex connector
    for analog inputs

Specifications

Connector - DTM4 connector for CAN and power (black = ground, red = power, white = CAN high, blue = CAN low) + Molex 39-01-3069
Switch life - 3 million operations
Default baud rate - 1000 kbit/s
Chemical Resistance - DEET, engine cleaner, isopropyl alcohol, sunscreen, all-purpose cleaner, citrus cleaner, muriatic acid
UV - UVB protection 400 hours
Salt spray according to ASTMB117

Weight (Racepad) - 110 grams

Dimensions (front width x height) - 197 x 180 mm

Thickness: 36.2 mm excluding knob height
