MiniLink - MINIX

MiniLink - MINIX

€1.899,00 EUR
€1.899,00 EUR
Sale Sold out
Taxes included.

AVAILABLE IN 7-10 WORKING DAYS

Easy to install. Convenient. Reliable.

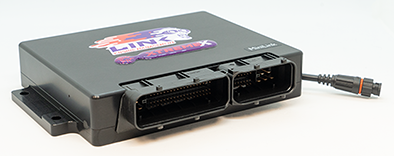

G4X PlugIn control units offer the latest engine management technology, designed to easily maximize your car's potential.
Our BMW Mini control unit comes in a special container that fits directly into the original location.
Installing the processing unit is very simple, without having to modify the original wiring according to the models listed below.

The MINIX Automotive control unit is designed for Tritec 1.6 SC R50-R53 engines .

  • Before purchasing, please check that the connector pinout matches the header in the photo listed.
  • This control unit only works with manual transmissions.
  • An XS frame and 4-bar map sensor (sold separately) are highly recommended.
  • Most factory features are supported.
  • Check the features tab for I/O expansion options


Suitable applications:

  • R50 –R53 MINI Hatchback with 1.6L SC engine


The Chronopack Dash option is not currently supported

G4X Plugin Key Features (where applicable):
Fuel and ignition mapping up to 6D
Closed-loop cam precision control (four cams, independent control)
Sequential fuel delivery
Digital trigger, all OEM models
Minimum OEM hardware
5D boost control with three switchable tables
Motorsport Features: Anti-lag, Launch, Flat Correction
continuous barometric change (on board)
CAN port
QuickTune: Automatic fuel tuning
Individual cylinder correction
USB Tuning Cable
Recording of statistics included in the on-board memory
Spark, boost and fuel compensations
Dual fuel, ignition and boost maps selectable in real time
Timing and start sensors can be a combination of Hall effect, variable reluctance or optical
Boost control related to gear, speed or throttle position
512 megabytes of data processor recording memory
Staged Injection Beat
leading with "windowing"

The following expansion switch connector inputs/outputs are provided:
Aux1 Auxiliary output
DI8 Digital input
DI9 Digital input
An Temp 3 Temperature sensor input
An Temp 4 Temperature input
An Volt 10 Analog Sensor Input 0-5V
An Volt 11 Analog Input 0-5V Output
+5V Low current power supply +5V,
sensor ground GND only.

*See the PC Link Help file for details on installing the expansion cable.

Download the manual.
Click here.
Click here to download the full PDF specifications.
