MXT RACE AIM 10" Dash MXT Strada RACE Edition
MXT RACE AIM 10" Dash MXT Strada RACE Edition
Regular price
€1.840,00 EUR
Regular price
Sale price
€1.840,00 EUR
Unit price
per
Taxes included.
Couldn't load pickup availability
SKU 100-0177
AVAILABLE IN APPROXIMATELY 7-10 WORKING DAYS

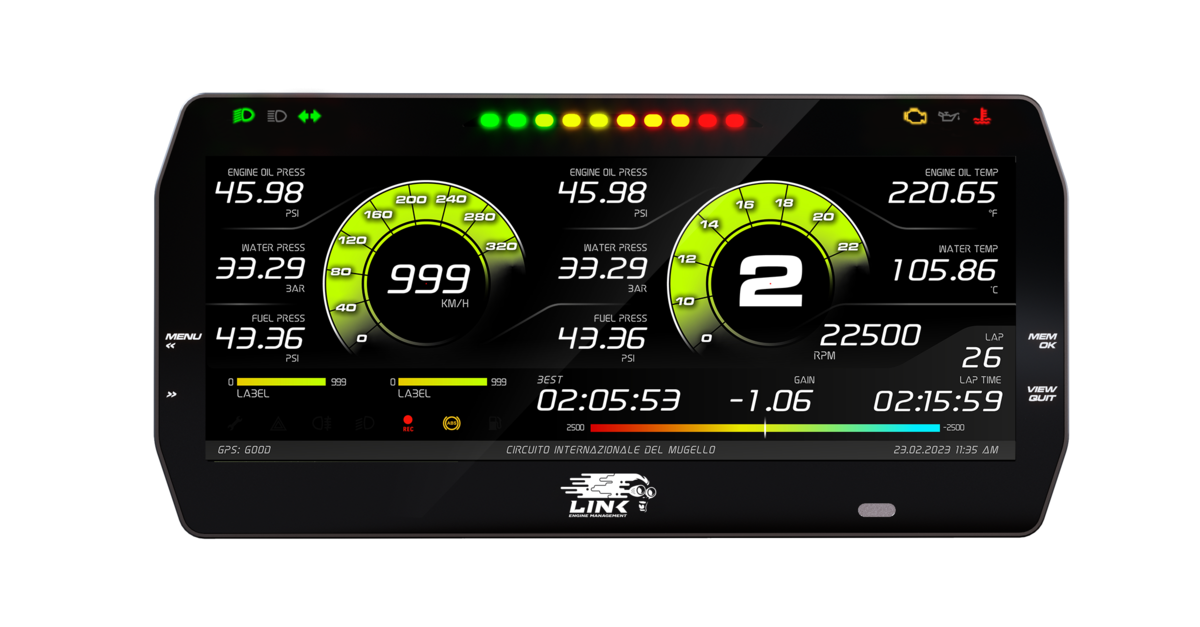

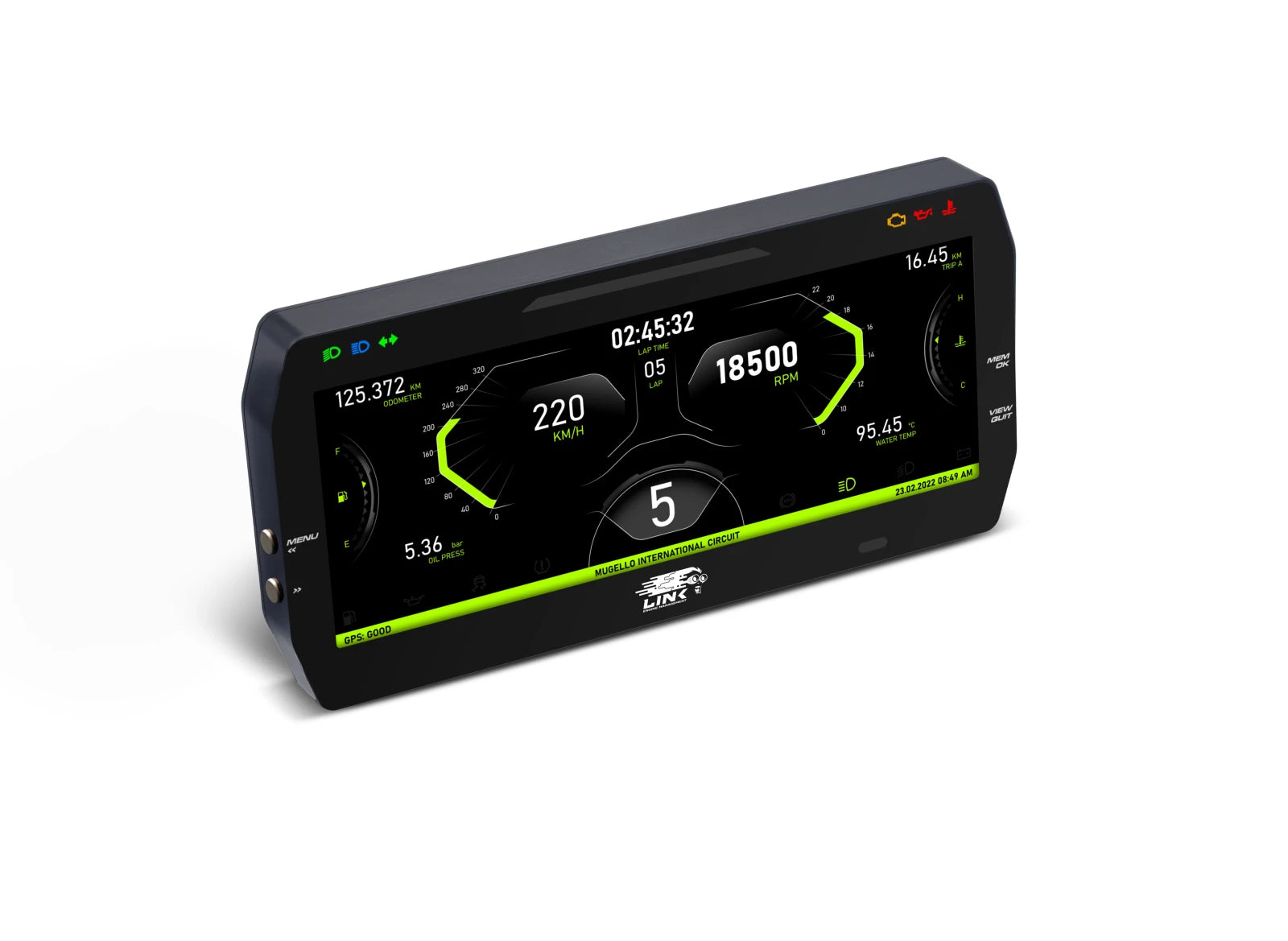

Link MXT Strada 10-inch dashboard, with AIM technology.
The Link MXT Strada Race Edition is a 10-inch color display dashboard featuring 10 RGB shift lights and six customizable LED warning lights. It comes pre-configured to work with all Link G4+/G4X/G5 wired and plug-in control units. See the features sheet for more information.
This listing refers to the "Race" edition, please see the "Street" edition if you are looking for a dashboard for road use.
The Strada dashboard is also available in 5-inch (MXS) and 7-inch (MXG) versions.
| Display | 10” TFT |
| Resolution | 1280x480 pixels |
| Contrast | 1000:1 |
| Brightness | 700cd/m2 - 1,100 Lumen |
| Ambient light sensor | Yes |
| Alarm LEDs | 6 freely configurable RGB |
| Shift lights | 10 integrated freely configurable RGB LEDs |
| CAN connections | 3 |
| ECU connections | CAN |
| Analog inputs | 8 fully configurable, max 1,000 Hz each |
| Digital inputs | 1 speed input, coil RPM input |
| Digital outputs | 1 (1 A max) |
| Second CAN | Yes |
| Body | Anodized Aluminum |
| Pushbuttons | Metallic |
| Connectors | 2 AMP connectors + 1 Binder connector |
| Power consumption | 400 mA |
| Dimensions | 278x135x43.2 mm |
| Weight | 1200 g |
| Waterproof | IP65 |
