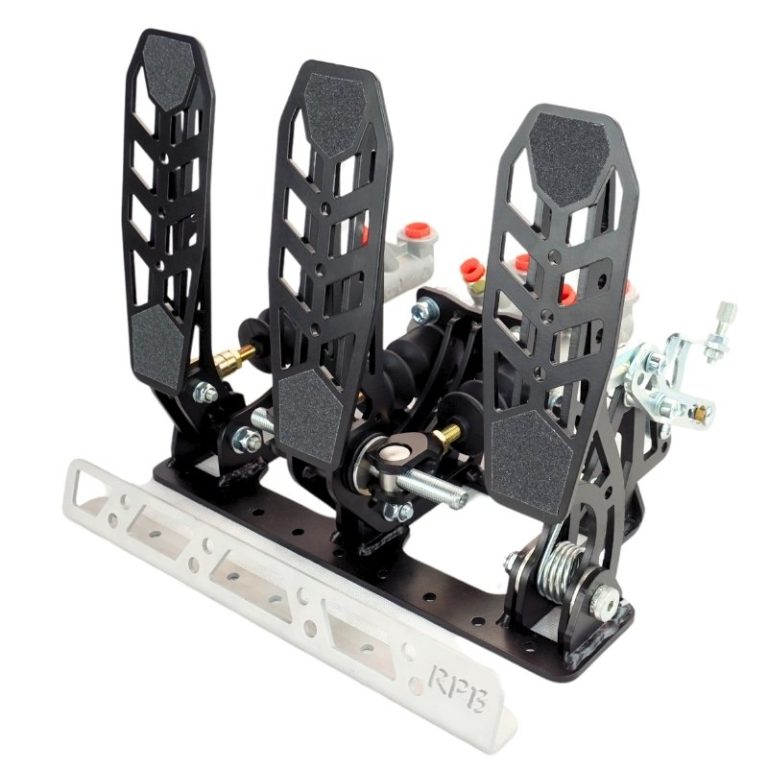

Pedalbox Drifting & Rally B

 The Drifting & Rally pedal box by Racingpedalboxes
 It is the best choice for this type of racing car.
 The pedal board is designed to be fixed directly to the floor
 or on guides to adapt it
 to different driving needs.
 The large surface of the pedals is very ergonomic
 and allows for comfortable driving
 and simpler pedal combinations.

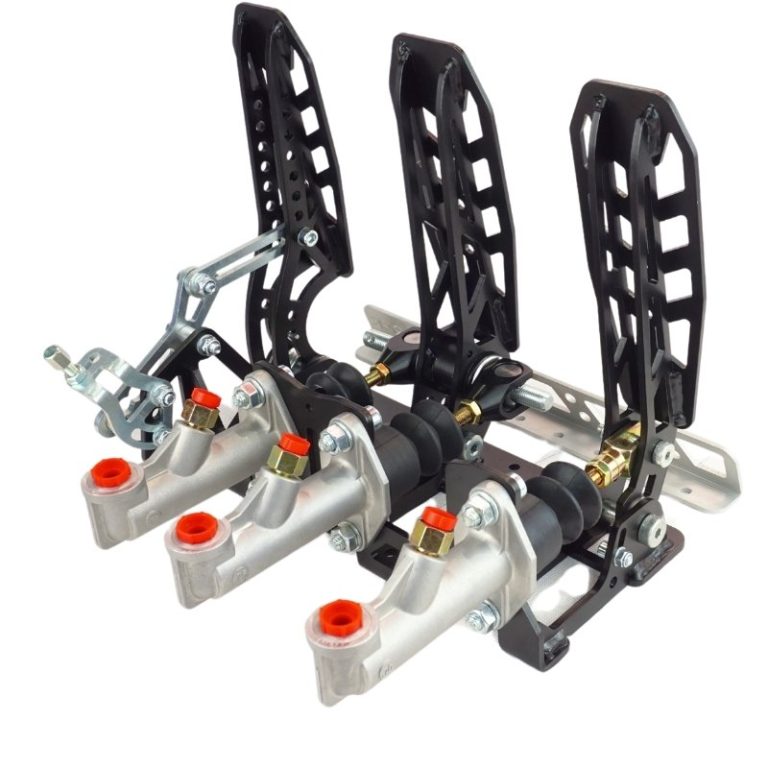

 The pedalboard is made of welded steel parts,
 with a lightweight design to improve the stiffness-to-weight ratio.

Description

 - The pedals have a large surface area to improve steering and facilitate pedal combinations.

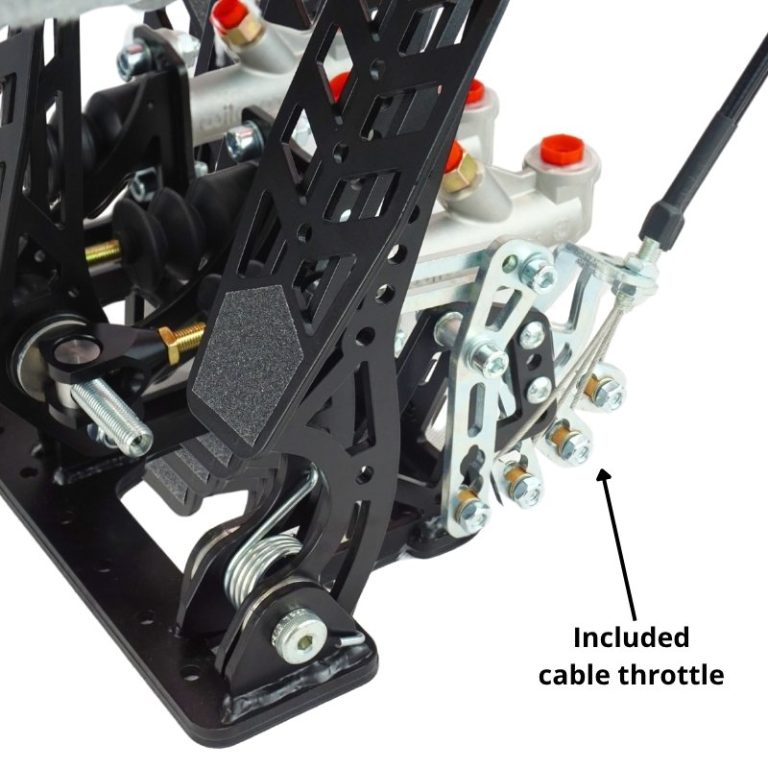

- The accelerator pedal features an adjustable cable mechanism (included in the pedal set). The pedal rotation angle and cable travel are adjustable.

 - Possibility of mounting the RPB0003 electronic sensor (ref. RPBAC07) to have the electronic accelerator.

 - The brake pedal is compatible with dual brake pumps and rocker arms. The gear ratio is 5:1.

 - The rocker arm (included in the pedal set) has a 7/16"- 20 UNF thread for maximum rigidity. The brake master cylinder mounts are 5/16"- 24 UNF, for Wilwood or Girling master cylinders.

 - The clutch pedal is hydraulic, for the brake pump.

-Ability to assemble Cable clutch accessory Pedalbox RPB0003 (ref. RPBAC06) to have cable clutch.

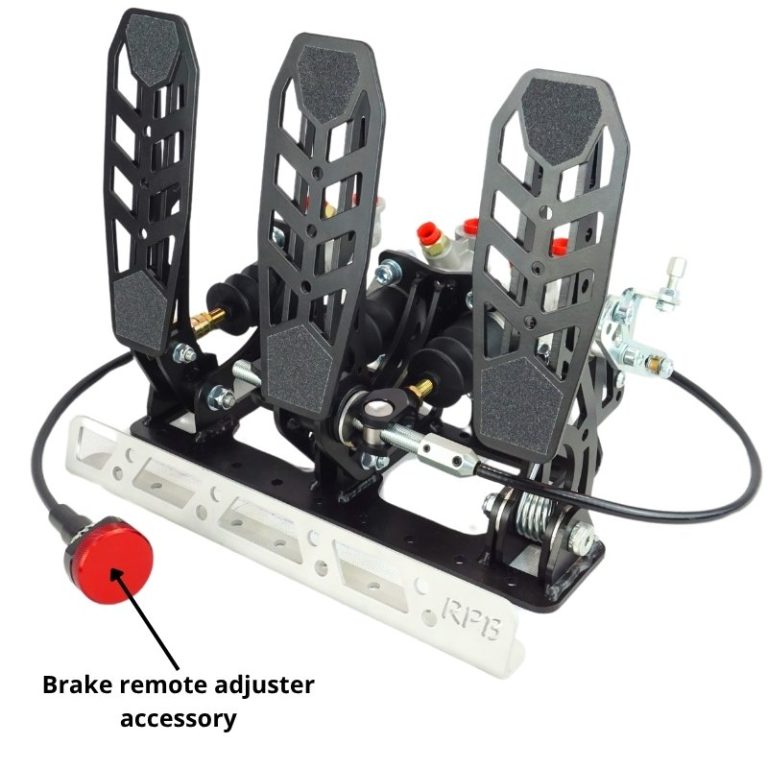

-Possibility to assemble Brake remote adjuster (7/16 UNF) (ref. RPBAB03) to control the brake balance from the cockpit.

-All the pedals have anti-slip surface .

-The pedalbox weight is 3.4 kg without master cylinders, and 4.5 kg with master cylinders.

-The pedal axes they are manufactured with high quality steel to guarantee maximum stiffness. Thanks to the nut torque adjustment it is possible to regulate the lateral movement of the pedals.

-All the components have anticorrosion coating to allow the maximum durability.

-The footrest support allows a comfortable driving position.

-Master cylinders are sold separately.

-Available in 2 colors, grey (ref. RPB0003) and black (ref. RPB0003B).

 Possibility of mounting the Pedalbox RPB0003 cable clutch accessory (ref. RPBAC06) to have the cable clutch.

-Possibility to mount the remote brake regulator (7/16 UNF) (ref. RPBAB03) to control the braking balance from the cockpit.

 -All pedals have a non-slip surface.

 -The weight of the pedalbox is 3.4 kg without brake pump and 4.5 kg with brake pump.

 -The pedal axles are made of high-quality steel to ensure maximum rigidity. Adjusting the nut torque allows you to adjust the lateral movement of the pedals.

 -All components are coated with anti-corrosion coating to ensure maximum durability.

 -The footrest support allows for a comfortable riding position.
