CAN Link keyboard 15 buttons + 2 rotary encoders

CAN Link keyboard 15 buttons + 2 rotary encoders

€655,00 EUR
€655,00 EUR
Sale Sold out
Taxes included.

AVAILABLE IN 7-10 WORKING DAYS

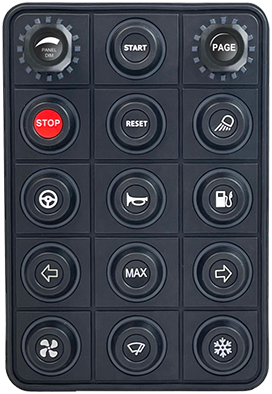

Rugged 15-button CAN keypad with interchangeable 15 mm inserts (sold separately). Two rotary encoders with 16 blue LEDs each. Four additional analog inputs allow direct connection of additional sensors/switches to the CAN bus network via the keypad. The compact layout and inclusion of rotary encoders and analog inputs saves significant dashboard space while significantly expanding functionality.

See the features tab for more information

Package Contents:
1 x 15-button CAN keyboard,
1 x DTM4 Mating Connector Kit

1 x Molex Mating Connector Kit
1 x Connection Sticker
1 x Keyboard Button Insert – Link Logo

Note: The keypad comes with blank button inserts; inserts must be selected and purchased individually. One Link ECU logo button insert is included in the bulk package.

  • 15 buttons and 2 rotary encoders (press-enabled, the buttons
    can operate independently of the rotary encoder)
  • 4 analog inputs for additional sensors or switches
  • Configurable CAN with PC connection G4X/G5: modification
    of the color of the LED backlighting of the buttons,
    color of the indicator ring of individual buttons, programmable to show the change of state,
    flashing option, multiple modes including momentary, locked
    and lever.
  • CAN Bus communication with
    the engine management system/PDM
  • 16 blue LED lights on the rotary encoders while all 13
    buttons have customizable RGB LED rings
  • Compatible with all Link G4X and G5 control units
  • Customizable button inserts: the system for replacing individual inserts makes it simple and economical
    changing the keyboard layout
  • DTM4 connector for CAN and power, Molex connector
    for analog inputs

Specifications

Connector - DTM4 connector for CAN and power (black = ground, red = power, white = CAN high, blue = CAN low) + Molex 39-01-3069
Switch life - 3 million operations
Default baud rate - 1000 kbit/s
Chemical Resistance - DEET, engine cleaner, isopropyl alcohol, sunscreen, all-purpose cleaner, citrus cleaner, muriatic acid
UV - UVB protection 400 hours
Salt spray according to ASTMB117

Weight - 360 grams

Dimensions: 105 x 152.5 x 16.3 mm (excluding mounting pins)
